OPA2837IRUNT Texas Instruments - Yeehing Electronics

Dual, Low-Power, Precision, Rail-to-Rail Output, 105MHz, Voltage Feedback Amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	3.487
100 — 249	3.055
250 — 999	2.142
1,000 +	1.21

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	SMD/SMT

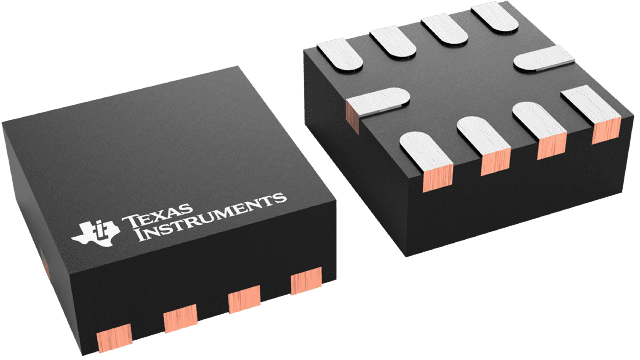

Package / Case	QFN-10
Supply Voltage - Max	5.4 V
Output Current per Channel	592 uA
Number of Channels	2 Channel
GBP - Gain Bandwidth Product	50 MHz
SR - Slew Rate	105 V/us
CMRR - Common Mode Rejection Ratio	95 dB to 110 dB
Ib - Input Bias Current	850 nA
Vos - Input Offset Voltage	0.13 mV
Supply Voltage - Min	2.7 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Shutdown	Shutdown
Series	OPA2837
Packaging	Reel
Amplifier Type	Precision
Input Type	Negative Rail
Output Type	Rail to Rail
Product	Operational Amplifiers
Brand	Texas Instruments
3 dB Bandwidth	105 MHz
en - Input Voltage Noise Density	4.7 nV/sqrt Hz
In - Input Noise Current Density	0.4 pA/sqrt Hz
Ios - Input Offset Current	60 nA
Moisture Sensitive	Yes
Product Type	Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio	110 dB
Factory Pack Quantity	250
Subcategory	Amplifier ICs

For more information, please refer to datasheet

Documents

OPA2837IRUNT Datasheet

More Information

The OPA837 and OPA2837 are single- and dual-channel unity-gain stable, voltage-feedback amplifiers that provide among the highest MHz per mW of bandwidth versus power among precision op amps. Using only 600 µA per channel on a single 5-V supply, these 3.0-mW devices deliver 105-MHz bandwidth at a gain of 1 V/V. The very low trimmed offset voltage of ±130 µV (maximum) comes with a typical (±1σ) drift of ±0.4 µV/°C.
