Texas Instruments

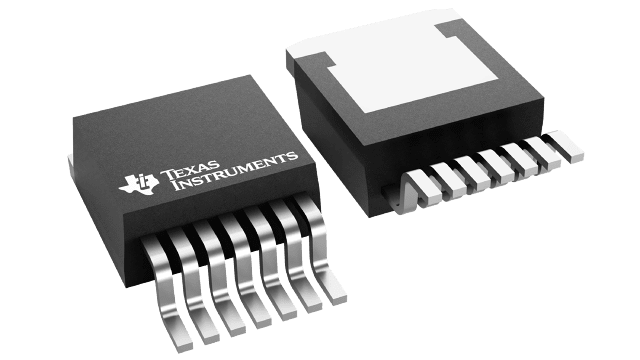

OPA452FA/500
OPA452FA/500
Regular price
$1.96 USD
Regular price
Sale price
$1.96 USD
Unit price
per
Couldn't load pickup availability
OPA452FA/500 Texas Instruments - Yeehing Electronics
80-V, 50-mA, unity-gain stable with a BW of 1.8-MHz operational amplifiers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.165 |
| 100 — 249 | 4.211 |
| 250 — 999 | 3.309 |
| 1,000 + | 1.96 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-263-7 |
| Supply Voltage - Max | 40 V |
| Output Current per Channel | 50 mA |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 1.8 MHz |
| SR - Slew Rate | 7.2 V/us |
| CMRR - Common Mode Rejection Ratio | 86 dB to 94 dB |
| Ib - Input Bias Current | 100 pA |
| Vos - Input Offset Voltage | 3 mV |
| Supply Voltage - Min | 10 V |
| Operating Supply Current | 5.5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | Shutdown |
| Series | OPA452 |
| Packaging | Reel |
| Amplifier Type | High Voltage Amplifier |
| Height | 4.44 mm |
| Length | 10.1 mm |
| Product | Operational Amplifiers |
| Supply Type | Dual |
| Width | 8.89 mm |
| Brand | Texas Instruments |
| Dual Supply Voltage | +/- 12 V, +/- 15 V, +/- 18 V |
| en - Input Voltage Noise Density | 21 nV/sqrt Hz |
| In - Input Noise Current Density | 0.009 pA/sqrt Hz |
| Maximum Dual Supply Voltage | +/- 40 V |
| Minimum Dual Supply Voltage | +/- 10 V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | +/- 10 V to +/- 40 V |
| Product Type | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio | 106.02 dB |
| Factory Pack Quantity | 500 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | Negative Rail + 5 V to Positive Rail - 5 V |
| Voltage Gain dB | 110 dB |
| Unit Weight | 0.056438 oz |
For more information, please refer to datasheet
Documents
| OPA452FA/500 Datasheet |
More Information
The OPA452 and OPA453 are low-cost operational amplifiers with high-voltage (80V) and high-current capabilities (50mA). The OPA452 is unity-gain stable and has a gain bandwidth product of 1.8MHz, whereas the OPA453 is optimized for gains greater than 5 and has a 7.5MHz bandwidth.
