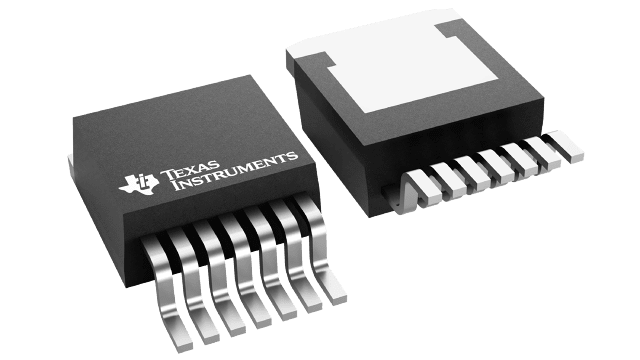

OPA453FAKTWT Texas Instruments - Yeehing Electronics

80-V, 50-mA optimized for gains greater than 5 with a BW of 7.5-MHz operational amplifiers

Pricing (USD)

Quantity	Unit Price
1 — 99	5.87
100 — 249	4.785
250 — 999	3.761
1,000 +	2.23

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TO-263-7
Supply Voltage - Max	40 V
Output Current per Channel	50 mA
Number of Channels	1 Channel
GBP - Gain Bandwidth Product	7.5 MHz
SR - Slew Rate	23 V/us
CMRR - Common Mode Rejection Ratio	86 dB to 94 dB
Ib - Input Bias Current	100 pA
Vos - Input Offset Voltage	3 mV
Supply Voltage - Min	10 V
Operating Supply Current	5.5 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Shutdown	Shutdown
Series	OPA453
Packaging	Reel
Amplifier Type	High Voltage Amplifier
Features	Decompensated
Height	4.44 mm
Length	10.1 mm
Product	Operational Amplifiers
Supply Type	Dual
Width	8.89 mm
Brand	Texas Instruments
Dual Supply Voltage	+/- 12 V, +/- 15 V, +/- 18 V
en - Input Voltage Noise Density	21 nV/sqrt Hz
In - Input Noise Current Density	0.009 pA/sqrt Hz
Maximum Dual Supply Voltage	+/- 40 V
Minimum Dual Supply Voltage	+/- 10 V
Moisture Sensitive	Yes
Operating Supply Voltage	+/- 10 V to +/- 40 V
Product Type	Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio	106.02 dB
Factory Pack Quantity	250
Subcategory	Amplifier ICs
Vcm - Common Mode Voltage	Negative Rail + 5 V to Positive Rail - 5 V
Voltage Gain dB	110 dB
Unit Weight	0.056438 oz

For more information, please refer to datasheet

Documents

OPA453FAKTWT Datasheet

More Information

The OPA452 and OPA453 are low-cost operational amplifiers with high-voltage (80V) and high-current capabilities (50mA). The OPA452 is unity-gain stable and has a gain bandwidth product of 1.8MHz, whereas the OPA453 is optimized for gains greater than 5 and has a 7.5MHz bandwidth.
