Description

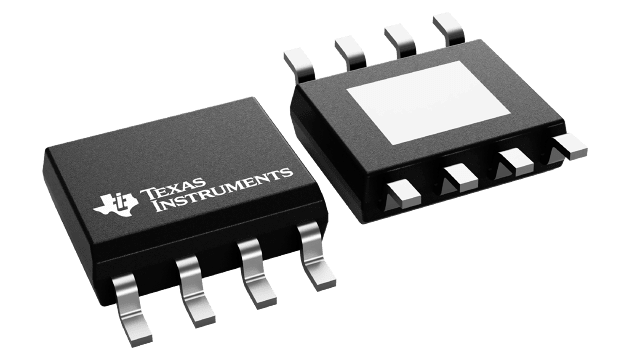

OPA455IDDA Texas Instruments - Yeehing Electronics
150-V, wide bandwidth 6.5-MHz, high-slew rate 32-V/µs unity-gain stable op amp
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 7.187 |
100 — 249 | 5.859 |
250 — 999 | 4.605 |
1,000 + | 2.73 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
OPA455IDDA Datasheet |
More Information
The OPA455 is a high-voltage (150-V), high current drive (45-mA), unity-gain stable operational amplifier with a gain-bandwidth product of 6.5 MHz and slew rate of 32 V/us. As a result of the amplifier wide output range, this device is an excellent choice for high-voltage piezo driving, avalance photodiode biasing, and high-voltage Howland current pump or voltage output stages.
