Texas Instruments

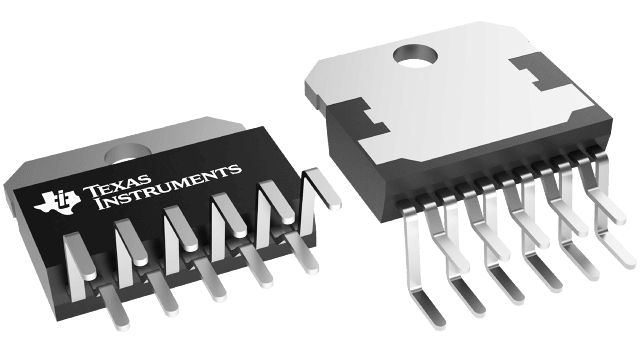

OPA541AP
OPA541AP
Regular price
$5.28 USD
Regular price
Sale price
$5.28 USD
Unit price
per
Couldn't load pickup availability
OPA541AP Texas Instruments - Yeehing Electronics
High Power Monolithic Operational Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 20.652 |
| 100 — 249 | 18.039 |
| 250 — 999 | 13.909 |
| 1,000 + | 5.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-220-11 |
| Supply Voltage - Max | 70 V |
| Output Current per Channel | 10 A |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 1.6 MHz |
| SR - Slew Rate | 10 V/us |
| CMRR - Common Mode Rejection Ratio | 95 dB to 113 dB |
| Ib - Input Bias Current | 50 pA |
| Vos - Input Offset Voltage | 1 mV |
| Supply Voltage - Min | 20 V |
| Operating Supply Current | 20 mA |
| Minimum Operating Temperature | - 25 C |
| Maximum Operating Temperature | + 85 C |
| Shutdown | No Shutdown |
| Series | OPA541 |
| Packaging | Tube |
| Amplifier Type | High Output Current Amplifier |
| Features | Adj Current Limit |
| Height | 4.5 mm |
| Length | 20.02 mm |
| Product | Operational Amplifiers |
| Supply Type | Single, Dual |
| Technology | BiFET |
| Width | 10.7 mm |
| Brand | Texas Instruments |
| Dual Supply Voltage | +/- 30 V |
| Maximum Dual Supply Voltage | +/- 35 V |
| Minimum Dual Supply Voltage | +/- 10 V |
| Operating Supply Voltage | 20 V to 70 V, +/- 10 V to +/- 35 V |
| Pd - Power Dissipation | 125 W |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 25 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | Negative Rail + 6 V to Positive Rail - 6 V |
| Voltage Gain dB | 97 dB |
| Unit Weight | 0.204589 oz |
For more information, please refer to datasheet
Documents
| OPA541AP Datasheet |
More Information
The OPA541 device is a power-operational amplifier capable of operation from power supplies up to ±40 V, and delivering continuous output currents up to 5 A. Internal current-limit circuitry can be user-programmed with a single external resistor, protecting the amplifier and load from fault conditions. The OPA541 devices fabricated are using a proprietary bipolar and FET process.
