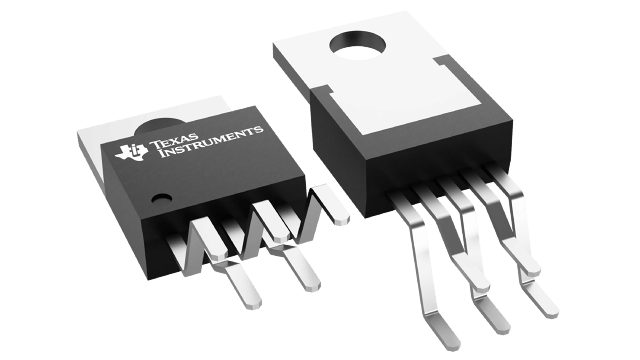

OPA544T Texas Instruments - Yeehing Electronics

High-Current (4A Typ), High-Voltage, Operational Amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	14.608
100 — 249	12.76
250 — 999	9.838
1,000 +	7.04

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-220-5
Output Current per Channel	2 A
Number of Channels	1 Channel
GBP - Gain Bandwidth Product	1.4 MHz
SR - Slew Rate	8 V/us
CMRR - Common Mode Rejection Ratio	90 dB to 106 dB
Ib - Input Bias Current	100 pA
Vos - Input Offset Voltage	5 mV
Operating Supply Current	12 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Shutdown	Shutdown
Series	OPA544
Packaging	Tube
Amplifier Type	High Output Current Amplifier
Height	8.51 mm
Length	10.16 mm
Product	Operational Amplifiers
Supply Type	Dual
Technology	FET
Width	4.58 mm
Brand	Texas Instruments
Dual Supply Voltage	+/- 12 V, +/- 15 V, +/- 18 V
en - Input Voltage Noise Density	36 nV/sqrt Hz
In - Input Noise Current Density	0.003 pA/sqrt Hz
Maximum Dual Supply Voltage	+/- 35 V
Minimum Dual Supply Voltage	+/- 10 V
Operating Supply Voltage	+/- 10 V to +/- 35 V
Product Type	Op Amps - Operational Amplifiers
Factory Pack Quantity	49
Subcategory	Amplifier ICs
Vcm - Common Mode Voltage	Negative Rail + 6 V to Positive Rail - 6 V
Voltage Gain dB	103 dB
Unit Weight	0.105822 oz

For more information, please refer to datasheet

Documents

OPA544T Datasheet

More Information

The OPA544 is a high-voltage/high-current operational amplifier suitable for driving a wide variety of high power loads. High performance FET op amp circuitry and high power output stage are combined on a single monolithic chip.
