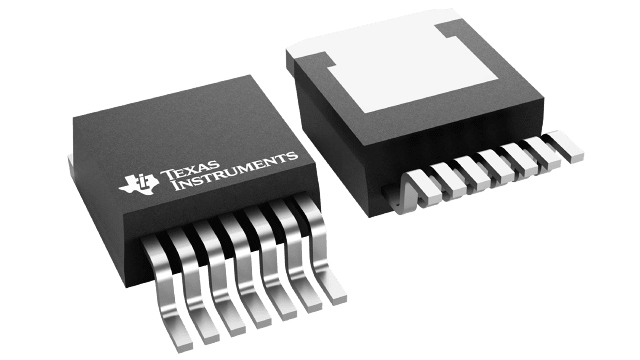

OPA547FKTWT Texas Instruments - Yeehing Electronics
High-Voltage, High-Current Op Amp with shutdown capability
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.309 |
| 100 — 249 | 9.005 |
| 250 — 999 | 6.943 |
| 1,000 + | 4.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-263-7 |
| Supply Voltage - Max | 60 V |
| Output Current per Channel | 2 A |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 1 MHz |
| SR - Slew Rate | 6 V/us |
| CMRR - Common Mode Rejection Ratio | 80 dB to 95 dB |
| Ib - Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 5 mV |
| Supply Voltage - Min | 8 V |
| Operating Supply Current | 10 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Shutdown | Shutdown |
| Series | OPA547 |
| Packaging | Reel |
| Amplifier Type | High Output Current Amplifier |
| Features | Adj Current Limit, Shutdown |
| Height | 4.44 mm |
| Input Type | Rail-to-Rail |
| Length | 10.1 mm |
| Product | Operational Amplifiers |
| Supply Type | Single, Dual |
| Width | 8.89 mm |
| Brand | Texas Instruments |
| Dual Supply Voltage | +/- 5 V, +/- 9 V, +/- 12 V |
| en - Input Voltage Noise Density | 90 nV/sqrt Hz |
| In - Input Noise Current Density | 0.2 pA/sqrt Hz |
| Maximum Dual Supply Voltage | +/- 30 V |
| Minimum Dual Supply Voltage | +/- 4 V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 8 V to 60 V, +/- 4 V to +/- 30 V |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | Negative Rail - 0.1 V to Positive Rail - 3 V |
| Voltage Gain dB | 115 dB |
| Unit Weight | 0.056438 oz |
For more information, please refer to datasheet
Documents
| OPA547FKTWT Datasheet |
