Description

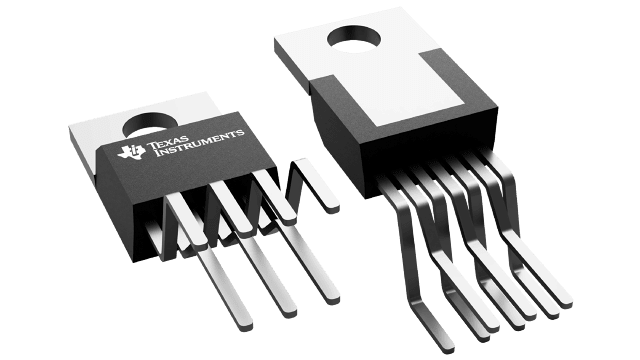

OPA547T Texas Instruments - Yeehing Electronics
High-Voltage, High-Current Op Amp with shutdown capability
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 8.781 |
100 — 249 | 7.671 |
250 — 999 | 5.914 |
1,000 + | 3.70 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | TO-220-7 |
Supply Voltage - Max | 60 V |
Output Current per Channel | 2 A |
Number of Channels | 1 Channel |
GBP - Gain Bandwidth Product | 1 MHz |
SR - Slew Rate | 6 V/us |
CMRR - Common Mode Rejection Ratio | 80 dB to 95 dB |
Ib - Input Bias Current | 500 nA |
Vos - Input Offset Voltage | 5 mV |
Supply Voltage - Min | 8 V |
Operating Supply Current | 10 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Shutdown | Shutdown |
Series | OPA547 |
Packaging | Tube |
Amplifier Type | High Output Current Amplifier |
Features | Adj Current Limit, Shutdown |
Height | 8.38 mm |
Input Type | Rail-to-Rail |
Length | 10.17 mm |
Product | Operational Amplifiers |
Supply Type | Single, Dual |
Width | 4.58 mm |
Brand | Texas Instruments |
Dual Supply Voltage | +/- 5 V, +/- 9 V, +/- 12 V |
en - Input Voltage Noise Density | 90 nV/sqrt Hz |
In - Input Noise Current Density | 0.2 pA/sqrt Hz |
Maximum Dual Supply Voltage | +/- 30 V |
Minimum Dual Supply Voltage | +/- 4 V |
Operating Supply Voltage | 8 V to 60 V, +/- 4 V to +/- 30 V |
Product Type | Op Amps - Operational Amplifiers |
Factory Pack Quantity | 50 |
Subcategory | Amplifier ICs |
Vcm - Common Mode Voltage | Negative Rail - 0.1 V to Positive Rail - 3 V |
Voltage Gain dB | 115 dB |
Unit Weight | 0.029214 oz |
For more information, please refer to datasheet
