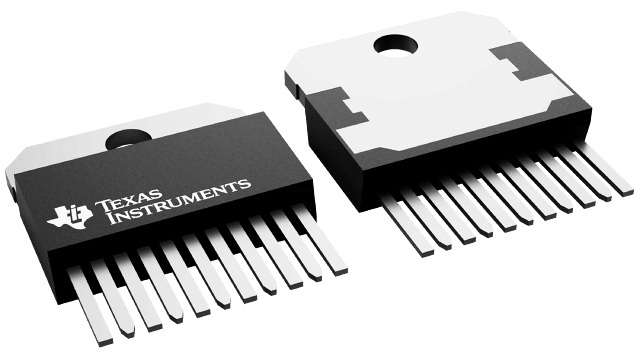

OPA549MKVC Texas Instruments - Yeehing Electronics
High-Voltage, High-Current Operational Amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 27.991 |
100 — 249 | 24.881 |
250 — 999 | 20.454 |
1,000 + | 12.81 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | Power-Package-11 |
Supply Voltage - Max | 60 V |
Output Current per Channel | 8 A |
Number of Channels | 1 Channel |
GBP - Gain Bandwidth Product | 900 kHz |
SR - Slew Rate | 9 V/us |
CMRR - Common Mode Rejection Ratio | 78 dB to 95 dB |
Ib - Input Bias Current | 500 nA |
Vos - Input Offset Voltage | 5 mV |
Supply Voltage - Min | 8 V |
Operating Supply Current | 26 mA |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 125 C |
Shutdown | Shutdown |
Series | OPA549-HIREL |
Packaging | Tray |
Features | Adj Current Limit, Shutdown |
Input Type | Rail-to-Rail |
Product | Operational Amplifiers |
Supply Type | Single, Dual |
Brand | Texas Instruments |
Minimum Dual Supply Voltage | +/- 4 V |
Operating Supply Voltage | 8 V to 60 V, +/- 4 V to +/- 30 V |
Product Type | Op Amps - Operational Amplifiers |
Factory Pack Quantity | 25 |
Subcategory | Amplifier ICs |
Unit Weight | 0.205915 oz |
For more information, please refer to datasheet
Documents
OPA549MKVC Datasheet |
More Information
The OPA549 is a low-cost, high-voltage and high-current operational amplifier ideal for driving a wide variety of loads. This laser-trimmed monolithic integrated circuit provides excellent low-level signal accuracy and high output voltage and current.
