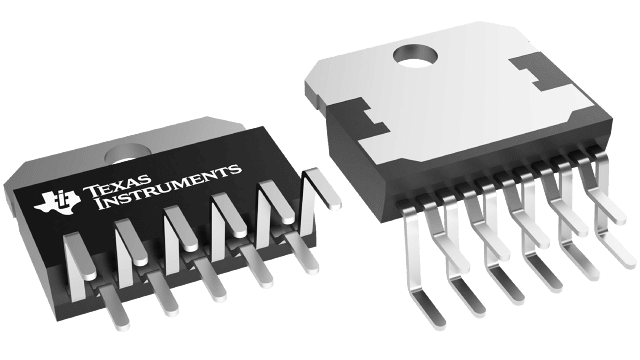

OPA549T Texas Instruments - Yeehing Electronics

High-Voltage, High-Current Op Amp, Excellent Output Swing

Pricing (USD)

Quantity	Unit Price
1 — 99	21.693
100 — 249	18.949
250 — 999	14.61
1,000 +	9.15

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-220-11
Supply Voltage - Max	60 V
Output Current per Channel	8 A
Number of Channels	1 Channel
GBP - Gain Bandwidth Product	900 kHz
SR - Slew Rate	9 V/us
CMRR - Common Mode Rejection Ratio	80 dB to 95 dB
Ib - Input Bias Current	500 nA
Vos - Input Offset Voltage	5 mV
Supply Voltage - Min	8 V
Operating Supply Current	26 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Shutdown	Shutdown
Series	OPA549
Packaging	Tube
Amplifier Type	High Output Current Amplifier
Features	Adj Current Limit, Shutdown
Height	4.5 mm
Input Type	Rail-to-Rail
Length	20.02 mm
Product	Operational Amplifiers
Supply Type	Single, Dual
Width	10.7 mm
Brand	Texas Instruments
Dual Supply Voltage	+/- 5 V, +/- 9 V, +/- 12 V
en - Input Voltage Noise Density	70 nV/sqrt Hz
In - Input Noise Current Density	1 pA/sqrt Hz
Maximum Dual Supply Voltage	+/- 30 V
Minimum Dual Supply Voltage	+/- 4 V
Operating Supply Voltage	8 V to 60 V, +/- 4 V to +/- 30 V
Product Type	Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio	92.04 dB
Factory Pack Quantity	25
Subcategory	Amplifier ICs
Vcm - Common Mode Voltage	Negative Rail - 0.1 V to Positive Rail - 3 V
Voltage Gain dB	110 dB
Unit Weight	0.181583 oz

For more information, please refer to datasheet
