Texas Instruments
OPA552FAKTWT
OPA552FAKTWT
Regular price
$2.37 USD
Regular price
Sale price
$2.37 USD
Unit price
per
Couldn't load pickup availability
OPA552FAKTWT Texas Instruments - Yeehing Electronics
High-current (380mA typ), high-voltage (60V), wide bandwidth (12MHz), operational amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.234 |
| 100 — 249 | 5.082 |
| 250 — 999 | 3.994 |
| 1,000 + | 2.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |

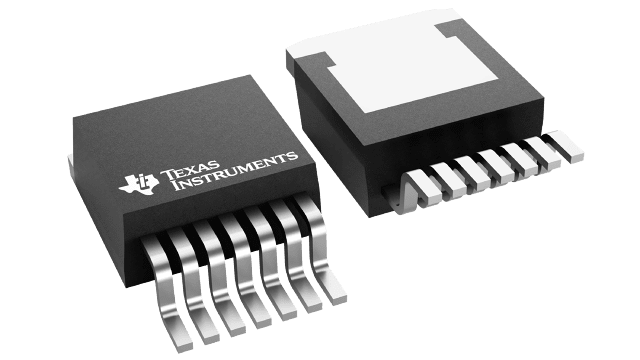

| Package / Case | TO-263-7 |
| Output Current per Channel | 200 mA |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 12 MHz |
| SR - Slew Rate | 24 V/us |
| CMRR - Common Mode Rejection Ratio | 92 dB to 102 dB |
| Ib - Input Bias Current | 100 pA |
| Vos - Input Offset Voltage | 3 mV |
| Operating Supply Current | 7 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | Shutdown |
| Series | OPA552 |
| Packaging | Reel |
| Amplifier Type | High Output Current Amplifier |
| Features | Decompensated |
| Height | 4.44 mm |
| Length | 10.1 mm |
| Product | Operational Amplifiers |
| Supply Type | Dual |
| Width | 8.89 mm |
| Brand | Texas Instruments |
| Dual Supply Voltage | +/- 30 V |
| en - Input Voltage Noise Density | 14 nV/sqrt Hz |
| In - Input Noise Current Density | 0.0035 pA/sqrt Hz |
| Maximum Dual Supply Voltage | +/- 30 V |
| Minimum Dual Supply Voltage | +/- 4 V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | +/- 4 V to +/- 30 V |
| Product Type | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio | 100 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | Negative Rail + 2.5 V to Positive Rail - 2.5 V |
| Voltage Gain dB | 126 dB |
| Unit Weight | 0.056438 oz |
For more information, please refer to datasheet
Documents
| OPA552FAKTWT Datasheet |
More Information
The OPA551x devices are low-cost operational amplifiers with high-voltage (60-V) and high-current (200-mA) capability.
