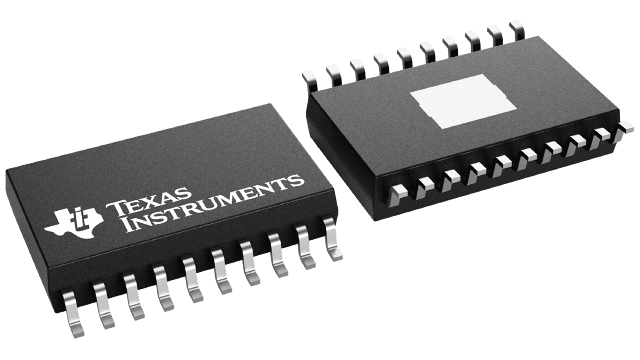

OPA564AIDWP Texas Instruments - Yeehing Electronics
1.5A, 24V, 17MHz, Power Operational Amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 5.877 |
100 — 249 | 4.791 |
250 — 999 | 3.766 |
1,000 + | 2.24 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | HSOP-20 |
Supply Voltage - Max | 24 V |
Output Current per Channel | 1.5 A |
Number of Channels | 1 Channel |
GBP - Gain Bandwidth Product | 17 MHz |
SR - Slew Rate | 40 V/us |
CMRR - Common Mode Rejection Ratio | 70 dB to 90 dB |
Ib - Input Bias Current | 100 pA |
Vos - Input Offset Voltage | 20 mV |
Supply Voltage - Min | 7 V |
Operating Supply Current | 39 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Shutdown | Shutdown |
Series | OPA564 |
Packaging | Reel |
Amplifier Type | High Current Amplifier |
Features | Adj Current Limit, Shutdown |
Height | 2.55 mm |
Input Type | Rail-to-Rail |
Length | 12.82 mm |
Product | Operational Amplifiers |
Supply Type | Single, Dual |
Width | 7.52 mm |
Brand | Texas Instruments |
Dual Supply Voltage | +/- 5 V, +/- 9 V |
en - Input Voltage Noise Density | 102.8 nV/sqrt Hz |
In - Input Noise Current Density | 0.004 pA/sqrt Hz |
Maximum Dual Supply Voltage | +/- 12 V |
Minimum Dual Supply Voltage | +/- 3.5 V |
Moisture Sensitive | Yes |
Operating Supply Voltage | 7 V to 24 V, +/- 3.5 V to +/- 12 V |
Product Type | Op Amps - Operational Amplifiers |
PSRR - Power Supply Rejection Ratio | 100 dB |
Factory Pack Quantity | 2000 |
Subcategory | Amplifier ICs |
Voltage Gain dB | 108 dB |
Unit Weight | 0.078135 oz |
For more information, please refer to datasheet
Documents
OPA564AIDWP Datasheet |
More Information
The OPA564 is a low-cost, high-current operational amplifier that is ideal for driving up to 1.5A into reactive loads. The high slew rate provides 1.3MHz full-power bandwidth and excellent linearity. These monolithic integrated circuits provide high reliability in demanding powerline communications and motor control applications.
