OPA564AQDWPRQ1 Texas Instruments - Yeehing Electronics

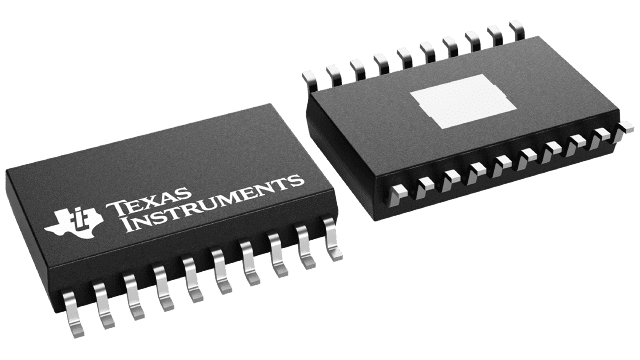

Automotive 1.5A, 24V, 17MHz, Power Operational Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.779 |
| 100 — 249 | 4.712 |
| 250 — 999 | 3.703 |
| 1,000 + | 12.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-20 |
| Supply Voltage - Max | 24 V |
| Output Current per Channel | 1.5 A |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 17 MHz |
| SR - Slew Rate | 40 V/us |
| CMRR - Common Mode Rejection Ratio | 70 dB to 80 dB |
| Ib - Input Bias Current | 100 pA |
| Vos - Input Offset Voltage | 20 mV |
| Supply Voltage - Min | 7 V |
| Operating Supply Current | 39 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | Shutdown |
| Series | OPA564-Q1 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | Adj Current Limit, Shutdown |
| Height | 2.65 mm |
| Input Type | Rail-to-Rail |
| Length | 12.95 mm |
| Product | Operational Amplifiers |
| Supply Type | Single, Dual |
| Width | 7.59 mm |
| Brand | Texas Instruments |
| Minimum Dual Supply Voltage | +/- 3.5 V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 7 V to 24 V, +/- 3.5 V to +/- 12 V |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 2000 |
| Subcategory | Amplifier ICs |
| Voltage Gain dB | 108 dB |
| Unit Weight | 0.017870 oz |
For more information, please refer to datasheet
Documents
| OPA564AQDWPRQ1 Datasheet |
More Information
The OPA564-Q1 is a low-cost, high-current operational amplifier that is ideal for driving up to 1.5A into reactive loads. The high slew rate provides 1.3MHz full-power bandwidth and excellent linearity. These monolithic integrated circuits provide high reliability in demanding powerline communications and motor control applications.
