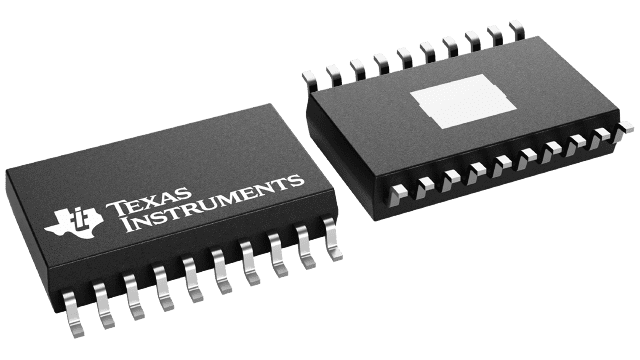

OPA569AIDWP Texas Instruments - Yeehing Electronics
Power Op Amp, Output Signal Swings Within 200mV of Rails at 2A Output Current
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 8.335 |
100 — 249 | 6.795 |
250 — 999 | 5.341 |
1,000 + | 3.17 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | SO-20 |
Supply Voltage - Max | 5.5 V |
Output Current per Channel | 2 A |
Number of Channels | 1 Channel |
GBP - Gain Bandwidth Product | 1.2 MHz |
SR - Slew Rate | 1.2 V/us |
CMRR - Common Mode Rejection Ratio | 70 dB to 90 dB |
Ib - Input Bias Current | 10 pA |
Vos - Input Offset Voltage | 2 mV |
Supply Voltage - Min | 2.7 V |
Operating Supply Current | 9 mA |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 125 C |
Shutdown | Shutdown |
Series | OPA569 |
Packaging | Reel |
Amplifier Type | Low Noise Amplifier |
Features | Adj Current Limit, Shutdown |
Height | 2.55 mm |
Input Type | Rail-to-Rail |
Length | 12.82 mm |
Output Type | Rail-to-Rail |
Product | Operational Amplifiers |
Supply Type | Single |
Width | 7.52 mm |
Brand | Texas Instruments |
en - Input Voltage Noise Density | 12 nV/sqrt Hz |
In - Input Noise Current Density | 0.0006 pA/sqrt Hz |
Moisture Sensitive | Yes |
Operating Supply Voltage | 2.7 V to 5.5 V |
Product Type | Op Amps - Operational Amplifiers |
PSRR - Power Supply Rejection Ratio | 98.42 dB |
Factory Pack Quantity | 1000 |
Subcategory | Amplifier ICs |
Vcm - Common Mode Voltage | Negative Rail - 0.1 V to Positive Rail + 0.1 V |
Voltage Gain dB | 126 dB |
Unit Weight | 0.017870 oz |
For more information, please refer to datasheet
Documents
OPA569AIDWP Datasheet |
More Information
The OPA569 is a low-cost, high-current, operational amplifier designed for driving a wide variety of loads while operating on low-voltage supplies. It operates from either single or dual supplies for design flexibility and has rail-to-rail swing on the input and output. Typical output swing is within 150mV of the supply rails, with output current of 2A. Output swing closer to the rails is achievable with lighter loads.
