Description
OPA857IRGTT Texas Instruments - Yeehing Electronics
Ultralow-Noise, Wideband, Pseudo-Differential Output Transimpedance Amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.494 |
100 — 249 | 3.925 |
250 — 999 | 3.026 |
1,000 + | 2.17 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -40 |
Maximum Operating Temperature | 85 |
Factory Pack Quantity | 250 |
Package | Pins | VQFN (RGT) | 16 |
For more information, please refer to datasheet
Documents
OPA857IRGTT Datasheet |
More Information

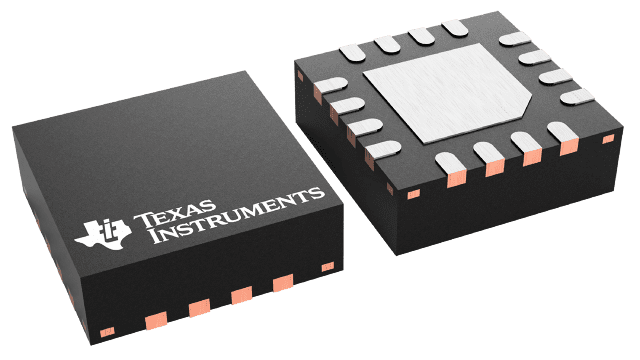

The OPA857 is a wideband, fast overdrive recovery, fast-settling, ultralow-noise transimpedance amplifier targeted at photodiode monitoring applications. With selectable feedback resistance, the OPA857 simplifies the design of high-performance optical systems. Very fast overload recovery time and internal input protection provide the best combination to protect the remainder of the signal chain from overdrive while minimizing recovery time. The two selectable transimpedance gain configurations allow high dynamic range and flexibility required in modern transimpedance amplifier applications. The OPA857 is available in a 3-mm × 3-mm VQFN package.
