Texas Instruments

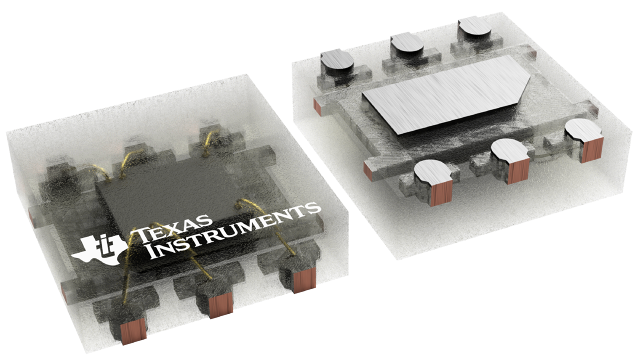

OPT3002DNPT
OPT3002DNPT
Couldn't load pickup availability
OPT3002DNPT Texas Instruments - Yeehing Electronics
Light-to-digital sensor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.561 |
| 100 — 249 | 1.289 |
| 250 — 999 | 0.926 |
| 1,000 + | 0.49 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Light to Digital Converters |
| RoHS | Y |
| Data Bus Width | 23 bit |
| Maximum Operating Frequency | 2.6 MHz |
| Operating Supply Voltage | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | USON-6 |
| Packaging | Reel |
| Series | OPT3002 |
| Brand | Texas Instruments |
| Interface Type | I2C |
| Mounting Style | SMD/SMT |
| Maximum Fall Time | 300 ns |
| Maximum Rise Time | 300 ns |
| Moisture Sensitive | Yes |
| Product Type | Optical Sensors |
| Factory Pack Quantity | 250 |
| Subcategory | Sensors |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.6 V |
For more information, please refer to datasheet
Documents
| OPT3002DNPT Datasheet |
More Information
The OPT3002 light-to-digital sensor provides the functionality of an optical power meter within a single device. This optical sensor greatly improves system performance over photodiodes and photoresistors. The OPT3002 has a wide spectral bandwidth, ranging from 300 nm to 1000 nm. Measurements can be made from 1.2 nW/cm2 up to 10 mW/cm2, without the need to manually select the full-scale ranges by using the built-in, full-scale setting feature. This capability allows light measurement over a 23-bit effective dynamic range. The results are compensated for dark-current effects, as well as other temperature variations.
