Texas Instruments

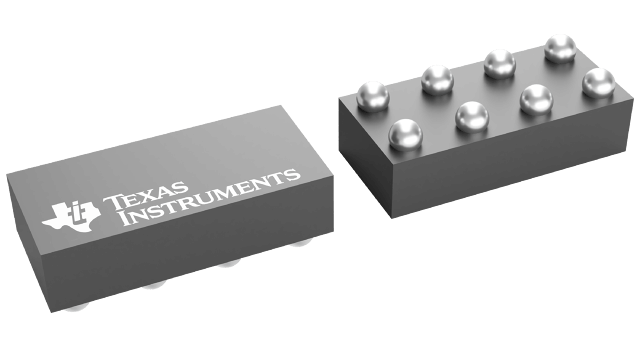

PCA9306YZTR
PCA9306YZTR
Regular price
$0.14 USD
Regular price
Sale price
$0.14 USD
Unit price
per
Couldn't load pickup availability
PCA9306YZTR Texas Instruments - Yeehing Electronics
2-bit bidirectional 400-kHz I2C/SMBus voltage level translator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.496 |
| 100 — 249 | 0.382 |
| 250 — 999 | 0.281 |
| 1,000 + | 0.14 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-8 |
| Packaging | Reel |
| Features | Enable Pin |
| Function | Voltage Translator |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | PCA9306 |
| Brand | Texas Instruments |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Tradename | NanoStar |
| Unit Weight | 0.000081 oz |
For more information, please refer to datasheet
Documents
| PCA9306YZTR Datasheet |
More Information
The PCA9306 device is a dual bidirectional I2C and SMBus voltage-level translator with an enable (EN) input, and is operational from 1.2-V to 3.3-V VREF1 and 1.8-V to 5.5-V VREF2.
