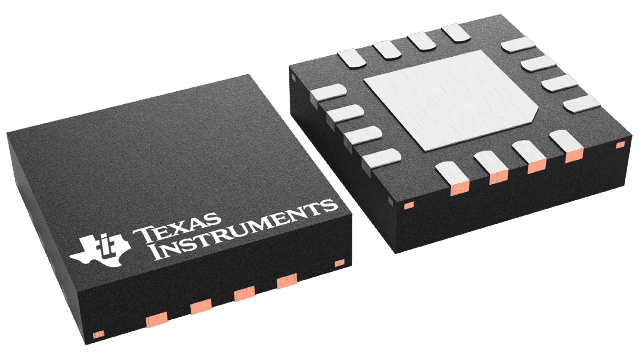

PCA9534RGVR Texas Instruments - Yeehing Electronics
8-bit 2.3- to 5.5-V I2C/SMBus I/O expander with interrupt & config registers
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.496 |
100 — 249 | 1.236 |
250 — 999 | 0.888 |
1,000 + | 0.47 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Interface - I/O Expanders |
RoHS | Y |
Number of I/Os | 8 I/O |
Maximum Clock Frequency | 400 kHz |
Operating Supply Voltage | 2.3 V to 5.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-16 |
Packaging | Reel |
Features | Configuration Registers, Interrupt Pin |
Output Current | 25 mA |
Output Voltage | 6 V |
Product | I/O Expanders |
Series | PCA9534 |
Type | I/O Expander |
Brand | Texas Instruments |
Logic Family | PCA9534 |
Moisture Sensitive | Yes |
Product Type | I/O Expanders |
Factory Pack Quantity | 2500 |
Subcategory | Interface ICs |
Unit Weight | 0.001312 oz |
For more information, please refer to datasheet
Documents
PCA9534RGVR Datasheet |
More Information
INT can be connected to the interrupt input of a microcontroller. By sending an interrupt signal on this line, the remote I/O can inform the microcontroller if there is incoming data on its ports without having to communicate via the I2C bus. Thus, the PCA9534 can remain a simple slave device.
