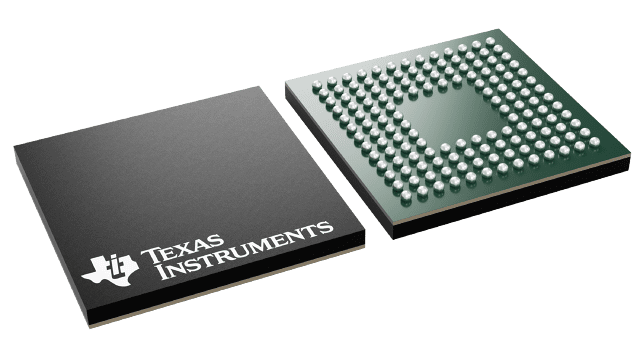

PCI1510ZWS Texas Instruments - Yeehing Electronics

Single slot PC cardbus controller

Pricing (USD)

Quantity	Unit Price
1 — 99	6.12
100 — 249	4.989
250 — 999	3.921
1,000 +	2.33

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

PCI1510ZWS Datasheet

More Information

The Texas Instruments PCI1510 device, a 144-terminal or a 209-terminal single-slot CardBus controller designed to meet the PCI Bus Power Management Interface Specification for PCI to CardBus Bridges, is an ultralow-power high-performance PCI-to-CardBus controller that supports a single PC card socket compliant with the PC Card Standard (rev. 7.2). The controller provides features that make it the best choice for bridging between PCI and PC Cards in both notebook and desktop computers. The PC Card Standard retains the 16-bit PC Card specification defined in the PCI Local Bus Specification and defines the 32-bit PC Card, CardBus, capable of full 32-bit data transfers at 33 MHz. The controller supports both 16-bit and CardBus PC Cards, powered at 5 V or 3.3 V, as required.
