Texas Instruments

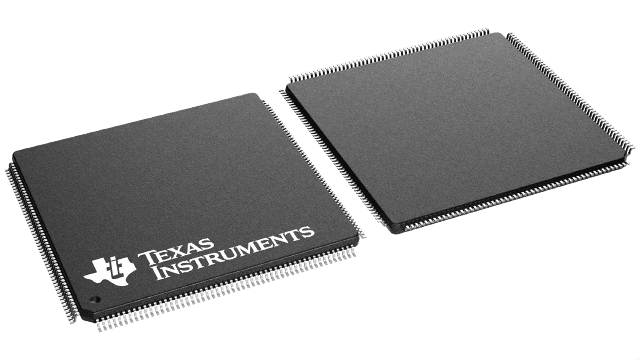

PCI1520IPDVEP
PCI1520IPDVEP
Couldn't load pickup availability
PCI1520IPDVEP Texas Instruments - Yeehing Electronics
Enhanced product PC card controllers data manual
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 14.784 |
| 100 — 249 | 12.914 |
| 250 — 999 | 9.957 |
| 1,000 + | 7.12 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | I/O Controller Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-208 |
| Series | PCI1520-EP |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Height | 1.4 mm |
| Length | 28 mm |
| Width | 28 mm |
| Brand | Texas Instruments |
| Product Type | I/O Controller Interface IC |
| Factory Pack Quantity | 36 |
| Subcategory | Interface ICs |
| Part # Aliases | V62/04613-01YE |
| Unit Weight | 0.089744 oz |
For more information, please refer to datasheet
Documents
| PCI1520IPDVEP Datasheet |
More Information
The Texas Instruments PCI1520, a 208-terminal dual-slot CardBus controller designed to meet the PCI Bus Power Management Interface Specification for PCI to CardBus Bridges, is an ultralow-power high-performance PCI-to-CardBus controller that supports two independent card sockets compliant with the PC Card Standard (rev. 7.1). The PCI1520 provides features that make it the best choice for bridging between PCI and PC Cards in both notebook and desktop computers. The 1997 PC Card Standard retains the 16-bit PC Card specification defined in PCI Local Bus Specification and defines the new 32-bit PC Card, CardBus, capable of full 32-bit data transfers at 33 MHz. The PCI1520 supports any combination of 16-bit and CardBus PC Cards in the two sockets, powered at 5 V or 3.3 V, as required.
