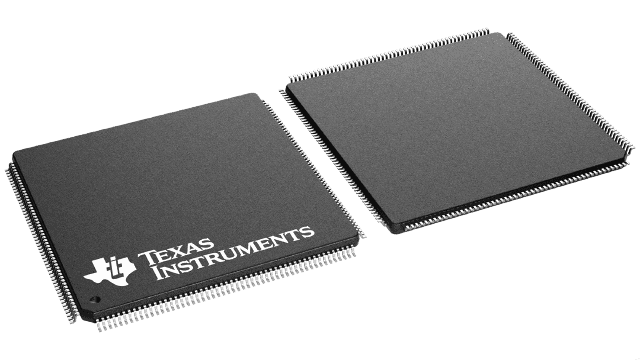

PCI1520PDV


YeeHing #: Y007-PCI1520PDV
Inventory: 2000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

PCI1520PDV Texas Instruments - Yeehing Electronics

PC card controller

Pricing (USD)

Quantity Unit Price
1 — 99 8.571
100 — 249 6.987
250 — 999 5.492
1,000 + 3.26

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category I/O Controller Interface IC
RoHS Y
Mounting Style SMD/SMT
Package / Case LQFP-208
Series PCI1520
Operating Supply Voltage 3.3 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Tray
Height 1.4 mm
Length 28 mm
Width 28 mm
Brand Texas Instruments
Product Type I/O Controller Interface IC
Protocol Supported PC Card
Factory Pack Quantity 36
Subcategory Interface ICs
Unit Weight 0.089744 oz

For more information, please refer to datasheet

Documents

PCI1520PDV Datasheet

More Information

The Texas Instruments PCI1520, a 208-terminal dual-slot CardBus controller designed to meet the PCI Bus Power Management Interface Specification for PCI to CardBus Bridges, is an ultralow-power high-performance PCI-to-CardBus controller that supports two independent card sockets compliant with the PC Card Standard (rev. 7.1). The PCI1520 provides features that make it the best choice for bridging between PCI and PC Cards in both notebook and desktop computers. The 1997 PC Card Standard retains the 16-bit PC Card specification defined in PCI Local Bus Specification and defines the new 32-bit PC Card, CardBus, capable of full 32-bit data transfers at 33 MHz. The PCI1520 supports any combination of 16-bit and CardBus PC Cards in the two sockets, powered at 5 V or 3.3 V, as required.
