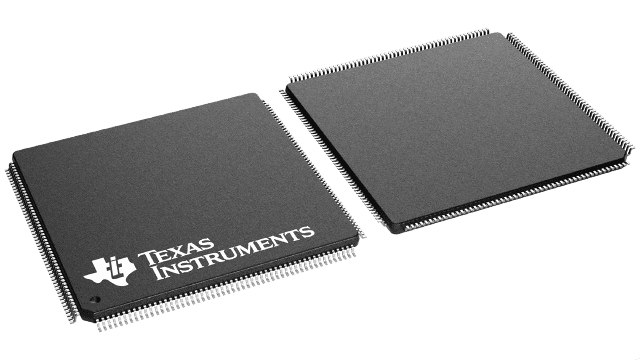

PCI2050BIPDV Texas Instruments - Yeehing Electronics

PCI-to-PCI bridge

Pricing (USD)

Quantity	Unit Price
1 — 99	20.908
100 — 249	18.263
250 — 999	14.081
1,000 +	8.82

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	PCI Interface IC
RoHS	Y
Type	Bridge - PCI to PCI
Maximum Clock Frequency	66 MHz
Operating Supply Voltage	3.3 V, 5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	LQFP-208
Packaging	Tray
Features	Hot-Swap Friendly
Height	1.4 mm
Length	28 mm
Series	PCI2050B
Width	28 mm
Brand	Texas Instruments
Data Bus Width	32 bit
Product Type	PCI Interface IC
Factory Pack Quantity	36
Subcategory	Interface ICs
Unit Weight	0.089744 oz

For more information, please refer to datasheet

Documents

PCI2050BIPDV Datasheet

More Information

The Texas Instruments PCI2050B PCI-to-PCI bridge provides a high performance connection path between two peripheral component interconnect (PCI) buses operating at a maximum bus frequency of 66-MHz. Transactions occur between masters on one and targets on another PCI bus, and the PCI2050B bridge allows bridged transactions to occur concurrently on both buses. The bridge supports burst mode transfers to maximize data throughput, and the two bus traffic paths through the bridge act independently.
