Texas Instruments
PCI2050BPDV
PCI2050BPDV
Regular price
$8.08 USD
Regular price
Sale price
$8.08 USD
Unit price
per
Couldn't load pickup availability

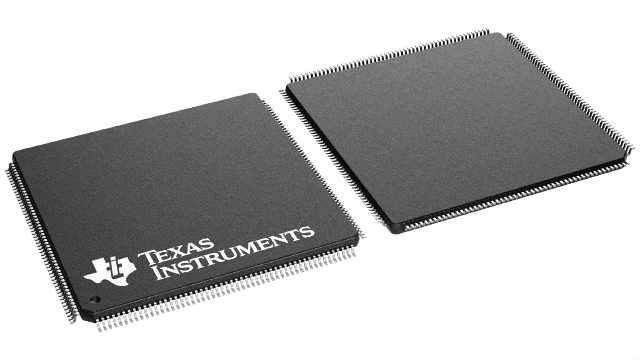

PCI2050BPDV Texas Instruments - Yeehing Electronics
PCI-to-PCI bridge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 19.166 |
| 100 — 249 | 16.742 |
| 250 — 999 | 12.908 |
| 1,000 + | 8.08 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | PCI Interface IC |
| RoHS | Y |
| Type | Bridge - PCI to PCI |
| Maximum Clock Frequency | 66 MHz |
| Operating Supply Voltage | 3.3 V, 5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-208 |
| Packaging | Tray |
| Features | Hot-Swap Friendly |
| Height | 1.4 mm |
| Length | 28 mm |
| Series | PCI2050B |
| Width | 28 mm |
| Brand | Texas Instruments |
| Data Bus Width | 32 bit |
| Product Type | PCI Interface IC |
| Factory Pack Quantity | 36 |
| Subcategory | Interface ICs |
| Part # Aliases | HPA00601PDV |
| Unit Weight | 0.089744 oz |
For more information, please refer to datasheet
Documents
| PCI2050BPDV Datasheet |
More Information
The Texas Instruments PCI2050B PCI-to-PCI bridge provides a high performance connection path between two peripheral component interconnect (PCI) buses operating at a maximum bus frequency of 66-MHz. Transactions occur between masters on one and targets on another PCI bus, and the PCI2050B bridge allows bridged transactions to occur concurrently on both buses. The bridge supports burst mode transfers to maximize data throughput, and the two bus traffic paths through the bridge act independently.
