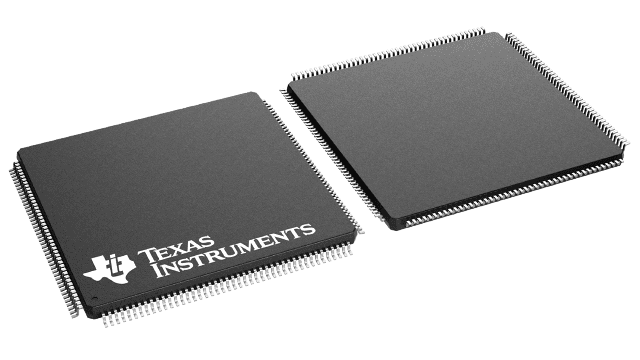

PCI2250PGF Texas Instruments - Yeehing Electronics

32-bit, 33-MHz PCI-to-PCI bridge, Compact PCI hot-swap friendly, 4-master

Pricing (USD)

Quantity	Unit Price
1 — 99	12.807
100 — 249	11.187
250 — 999	8.625
1,000 +	5.40

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	PCI Interface IC
RoHS	Y
Type	Bridge - PCI to PCI
Maximum Clock Frequency	33 MHz
Operating Supply Voltage	3.3 V, 5 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	LQFP-176
Packaging	Tray
Features	Hot-Swap Friendly
Height	1.45 mm
Length	24.2 mm
Series	PCI2250
Width	24.2 mm
Brand	Texas Instruments
Supply Current - Max	20 mA
Data Bus Width	32 bit
Moisture Sensitive	Yes
Product Type	PCI Interface IC
Factory Pack Quantity	40
Subcategory	Interface ICs
Unit Weight	0.066886 oz

For more information, please refer to datasheet

Documents

PCI2250PGF Datasheet

More Information

The Texas Instruments PCI2250 PCI-to-PCI bridge provides a high performance connection path between two peripheral component interconnect (PCI) buses. Transactions occur between masters on one PCI bus and targets on another PCI bus, and the PCI2250 allows bridged transactions to occur concurrently on both buses. The bridge supports burst-mode transfers to maximize data throughput, and the two bus traffic paths through the bridge act independently.
