Texas Instruments

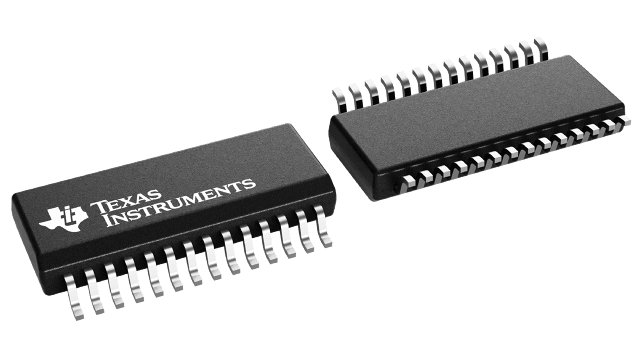

PCM1680DBQR
PCM1680DBQR
Regular price
$1.33 USD
Regular price
Sale price
$1.33 USD
Unit price
per
Couldn't load pickup availability
PCM1680DBQR Texas Instruments - Yeehing Electronics
105dB SNR 8-Channel Audio DAC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.84 |
| 100 — 249 | 3.365 |
| 250 — 999 | 2.359 |
| 1,000 + | 1.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio D/A Converter ICs |
| RoHS | Y |
| Series | PCM1680 |
| Number of Converters | 8 Converter |
| Resolution | 24 bit |
| Interface Type | I2C, SPI |
| Sampling Rate | 192 kS/s |
| SNR - Signal to Noise Ratio | 105 dB |
| Number of DAC Outputs | 8 Output |
| Operating Supply Voltage | 5 V |
| Minimum Operating Temperature | - 25 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | SSOP-28 |
| Packaging | Reel |
| Description/Function | 105DB SNR 8-CHANNEL AUDIO DAC |
| Height | 1.5 mm (Max) |
| Length | 10 mm (Max) |
| Output Type | Voltage |
| Product | Audio DACs |
| Supply Type | Analog and Digital |
| Width | 4 mm (Max) |
| Architecture | Delta-Sigma |
| Brand | Texas Instruments |
| Number of Channels | 8 Channel |
| THD plus Noise | 0.002 % |
| Gain Error | +/- 6 % FSR |
| Number of DACs | 8 DAC |
| Polarity | Bipolar |
| Product Type | Audio D/A Converter ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Unit Weight | 0.025045 oz |
For more information, please refer to datasheet
Documents
| PCM1680DBQR Datasheet |
More Information
The PCM1680 is a CMOS, monolithic integrated circuit which features eight 24-bit audio digital-to-analog converters (DACs) and support circuitry in a small SSOP-28. The DACs use TI's enhanced multilevel delta-sigma (%#x394;) architecture to achieve excellent signal-to-noise performance and a high tolerance to clock jitter.
