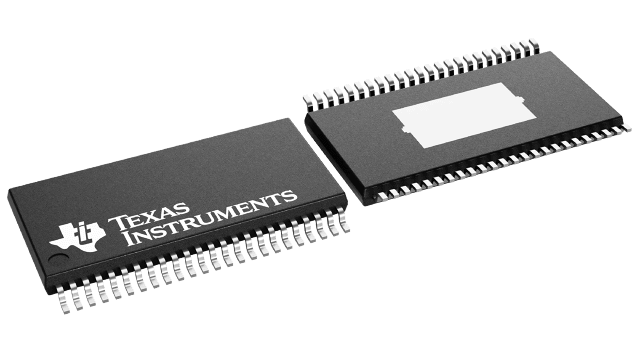

PCM1690DCA Texas Instruments - Yeehing Electronics

113dB SNR 8-Channel Audio DAC with Differential Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	4.946
100 — 249	4.032
250 — 999	3.169
1,000 +	1.88

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio D/A Converter ICs
RoHS	Y
Series	PCM1690
Number of Converters	8 Converter
Resolution	24 bit
Interface Type	I2C, SPI
Sampling Rate	192 kS/s
SNR - Signal to Noise Ratio	113 dB
Number of DAC Outputs	8 Output
Operating Supply Voltage	5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-48
Packaging	Reel
Description/Function	113DB SNR 8-CHANNEL AUDIO DAC WITH DIFFERENTIAL OUTPUTS
Height	1.15 mm
Length	12.5 mm
Output Type	Voltage
Product	Audio DACs
Supply Type	Analog and Digital
Width	6.1 mm
Architecture	Current Segment DAC
Brand	Texas Instruments
Number of Channels	8 Channel
THD plus Noise	0.002 %
Gain Error	+/- 6 % FSR
Moisture Sensitive	Yes
Number of DACs	8 DAC
Polarity	Bipolar
Product Type	Audio D/A Converter ICs
Factory Pack Quantity	2000
Subcategory	Audio ICs
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.5 V
Unit Weight	0.007422 oz

For more information, please refer to datasheet

Documents

PCM1690DCA Datasheet

More Information

The PCM1690 device is a high-performance, single-chip, 24-bit, eight-channel, audio digital-to-analog converter (DAC) with differential outputs. The eight-channel, 24-bit DAC employs an enhanced, multi-level delta-sigma (ΔΣ) modulator and supports 8-kHz to 192-kHz sampling rates and a 16-/20-/24-/32-bit width digital audio input word on the audio interface. The audio interface of the PCM1690 supports the time-division-multiplexed (TDM) format in addition to the standard I2S, left-justified, right-justified, and DSP formats.
