Description

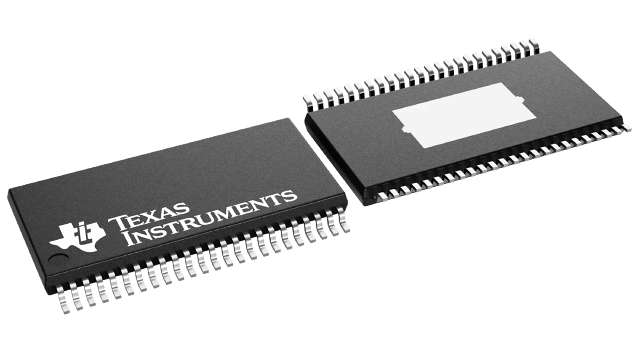

PCM1690DCAR Texas Instruments - Yeehing Electronics
113dB SNR 8-Channel Audio DAC with Differential Outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.122 |
100 — 249 | 3.36 |
250 — 999 | 2.641 |
1,000 + | 1.57 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
PCM1690DCAR Datasheet |
More Information
The PCM1690 device is a high-performance, single-chip, 24-bit, eight-channel, audio digital-to-analog converter (DAC) with differential outputs. The eight-channel, 24-bit DAC employs an enhanced, multi-level delta-sigma (ΔΣ) modulator and supports 8-kHz to 192-kHz sampling rates and a 16-/20-/24-/32-bit width digital audio input word on the audio interface. The audio interface of the PCM1690 supports the time-division-multiplexed (TDM) format in addition to the standard I2S, left-justified, right-justified, and DSP formats.
