Texas Instruments
PCM1690IDCARQ1
PCM1690IDCARQ1
Regular price
$1.53 USD
Regular price
Sale price
$1.53 USD
Unit price
per
Couldn't load pickup availability

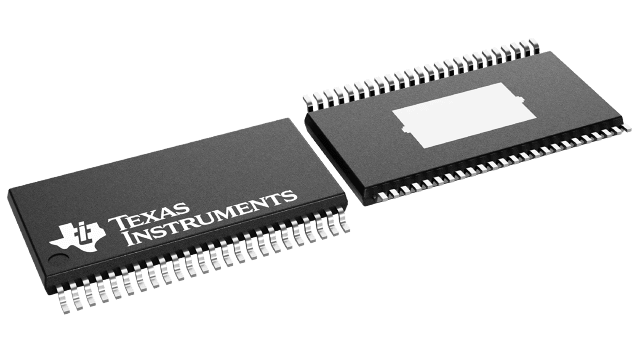

PCM1690IDCARQ1 Texas Instruments - Yeehing Electronics
Automotive Catalog 113dB SNR 8-Channel Audio DAC with Differential Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.863 |
| 100 — 249 | 3.965 |
| 250 — 999 | 3.116 |
| 1,000 + | 1.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio D/A Converter ICs |
| RoHS | Y |
| Series | PCM1690-Q1 |
| Number of Converters | 8 Converter |
| Resolution | 24 bit |
| Interface Type | I2C, SPI |
| Sampling Rate | 192 kS/s |
| SNR - Signal to Noise Ratio | 113 dB |
| Number of DAC Outputs | 8 Output |
| Operating Supply Voltage | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-48 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Description/Function | AUTOMOTIVE CATALOG 113DB SNR 8-CHANNEL AUDIO DAC WITH DIFFERENTIAL OUTPUTS |
| Product | Audio DACs |
| Architecture | Current Segment |
| Brand | Texas Instruments |
| Number of Channels | 8 Channel |
| THD plus Noise | 0.002 % |
| Maximum Clock Frequency | 192 kHz |
| Moisture Sensitive | Yes |
| Number of DACs | 8 DAC |
| Operating Supply Current | 110 mA |
| Pd - Power Dissipation | 847 mW |
| Product Type | Audio D/A Converter ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.007422 oz |
For more information, please refer to datasheet
Documents
| PCM1690IDCARQ1 Datasheet |
More Information
The PCM1690-Q1 is a high-performance, single-chip, 24-bit, eight-channel, audio digital-to-analog converter (DAC) with differential outputs. The eight-channel, 24-bit DAC employs an enhanced, multi-level delta-sigma (ΔΣ) modulator and supports 8-kHz to 192-kHz sampling rates and a 16-/20-/24-/32-bit width digital audio input word on the audio interface. The audio interface of the PCM1690-Q1 supports the time-division-multiplexed (TDM) format in addition to the standard I2S, left-justified, right-justified, and DSP formats.
