Texas Instruments

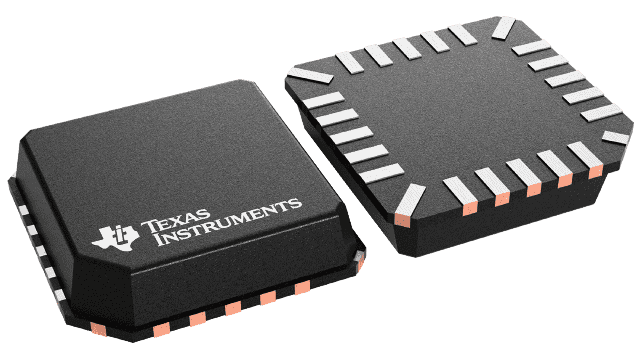

PCM1772RGAR
PCM1772RGAR
Regular price
$0.91 USD
Regular price
Sale price
$0.91 USD
Unit price
per
Couldn't load pickup availability
PCM1772RGAR Texas Instruments - Yeehing Electronics
98dB SNR Low-Power Stereo DAC with line-out (S/W Control)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.624 |
| 100 — 249 | 2.299 |
| 250 — 999 | 1.612 |
| 1,000 + | 0.91 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio D/A Converter ICs |
| RoHS | Y |
| Series | PCM1772 |
| Number of Converters | 2 Converter |
| Resolution | 24 bit |
| Interface Type | SPI |
| Sampling Rate | 48 kS/s |
| SNR - Signal to Noise Ratio | 98 dB |
| Number of DAC Outputs | 2 Output |
| Operating Supply Voltage | 2.4 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFNP-20 |
| Packaging | Reel |
| Description/Function | 98DB SNR LOW-POWER STEREO DAC WITH LINE-OUT (S/W CONTROL) |
| Height | 0.75 mm |
| Length | 4.2 mm |
| Output Type | Voltage |
| Product | Audio DACs |
| Supply Type | Single |
| Width | 4.2 mm |
| Architecture | Multilevel Delta-Sigma |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| THD plus Noise | 0.007 % |
| Development Kit | DEM-DAI1772 |
| Gain Error | +/- 8 % FSR |
| Number of DACs | 2 DAC |
| Operating Supply Current | 2.5 mA |
| Polarity | Bipolar |
| Product Type | Audio D/A Converter ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.6 V |
For more information, please refer to datasheet
Documents
| PCM1772RGAR Datasheet |
More Information
The PCM1772 and PCM1773 devices are CMOS, monolithic, integrated circuits which include stereo digital-to-analog converters, lineout circuitry, and support circuitry in small TSSOP-16 and VQFN-20 packages.
