Texas Instruments

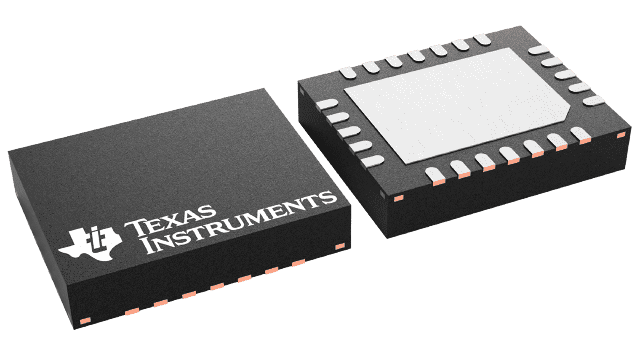

PCM1870RHFT
PCM1870RHFT
Regular price
$1.75 USD
Regular price
Sale price
$1.75 USD
Unit price
per
Couldn't load pickup availability
PCM1870RHFT Texas Instruments - Yeehing Electronics
90dB SNR Low-Power Stereo Audio ADC With Microphone Bias, ALC, Sound Effect, Notch Filter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.591 |
| 100 — 249 | 3.743 |
| 250 — 999 | 2.942 |
| 1,000 + | 1.75 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio A/D Converter ICs |
| RoHS | Y |
| Series | PCM1870 |
| Number of Converters | 2 Converter |
| Resolution | 16 bit |
| Sampling Rate | 50 kS/s |
| Number of ADC Inputs | 4 Input |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Packaging | Reel |
| Height | 0.9 mm |
| Input Voltage | 2.828 V |
| Length | 5 mm |
| Power Consumption | 26.4 mW |
| Product | Audio ADCs |
| Type | Stereo Audio ADC |
| Width | 4 mm |
| Brand | Texas Instruments |
| Interface Type | Serial, 2-Wire, 3-Wire, I2C, SPI |
| Number of Channels | 2 Channel |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 39.6 mW |
| Product Type | Audio A/D Converter ICs |
| SNR - Signal to Noise Ratio | 90 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Audio ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2.4 V |
| Unit Weight | 0.001926 oz |
For more information, please refer to datasheet
Documents
| PCM1870RHFT Datasheet |
More Information
The PCM1870 is a low-power stereo ADC designed for portable digital audio applications, with line-input amplifier, boost amplifier, microphone bias, programmable gain control, sound effects, and auto level control (ALC). It is available in 24-QFN (4-mm × 5-mm) and 24-DSBGA (2.49-mm × 3.49-mm) packages to save footprint. The PCM1870 accepts right-justified, left-justified, I2S, and DSP formats, providing easy interfacing to audio DSP and encoder chips. Sampling rates up to 50 kHz are supported. The user-programmable functions are accessible through a 2- or 3-wire serial control port.
