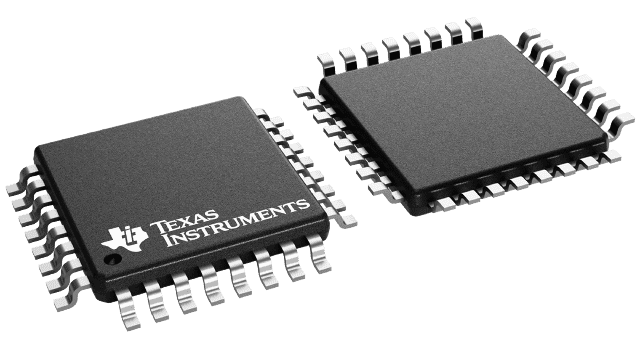

PCM2706PJTR Texas Instruments - Yeehing Electronics
98dB SNR Stereo USB2.0 FS DAC with line-out and S/PDIF output, Bus/Self-powered (I2S)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.167 |
| 100 — 249 | 5.843 |
| 250 — 999 | 4.592 |
| 1,000 + | 2.73 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio D/A Converter ICs |
| RoHS | Y |
| Series | PCM2706 |
| Number of Converters | 2 Converter |
| Resolution | 16 bit |
| Interface Type | I2S, USB |
| Sampling Rate | 48 kS/s |
| SNR - Signal to Noise Ratio | 0 dB |
| Number of DAC Outputs | 2 Output |
| Operating Supply Voltage | 3.3 V, 5 V |
| Minimum Operating Temperature | - 25 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TQFP-32 |
| Packaging | Reel |
| Description/Function | 98DB SNR STEREO USB2.0 FS DAC WITH LINE-OUT AND S/PDIF OUTPUT, BUS/SELF-POWERED (I2S) |
| Features | S/PDIF Output, Ext. ROM I/F, Headphone Output |
| Height | 1 mm |
| Length | 7 mm |
| Output Power | 175 mW |
| Output Type | Voltage |
| Product | Audio DACs |
| Supply Type | Analog and Digital |
| Type | Stereo Audio DAC |
| Width | 7 mm |
| Architecture | Delta-Sigma |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Gain Error | +/- 8 % FSR |
| Number of DACs | 2 DAC |
| Polarity | Bipolar |
| Product Type | Audio D/A Converter ICs |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio ICs |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 3 V |
| Unit Weight | 0.002568 oz |
For more information, please refer to datasheet
Documents
| PCM2706PJTR Datasheet |
More Information
The PCM2704/5/6/7 is TI's single-chip USB stereo audio DAC with USB-compliant full-speed protocol controller and S/PDIF. The USB-protocol controller works with no software code, but USB descriptors can be modified in some parts (for example, vendor ID/product ID) through the use of an external ROM (PCM2704/6), SPI (PCM2705/7), or on request. The modification of the USB descriptor through external ROM or SPI must comply with USB-IF guidelines, and the vendor ID must be your own ID as assigned by the USB-IF. The descriptor also can be modified by changing a mask; contact your representative for details. The PCM2704/5/6/7 employs SpAct architecture, TI's unique system that recovers the audio clock from USB packet data. On-chip analog PLLs with SpAct enable playback with low clock jitter.
