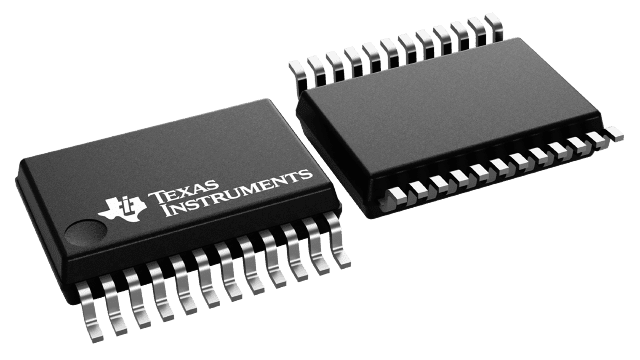

PCM3010DBR


YeeHing #: Y002-PCM3010DBR
Inventory: 4600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

PCM3010DBR Texas Instruments - Yeehing Electronics

24-bit Stereo Audio Codec 96kHz (ADC) 192 kHz (DAC) with Single-Ended Analog Input/Output

Pricing (USD)

Quantity Unit Price
1 — 99 8.324
100 — 249 6.786
250 — 999 5.334
1,000 + 3.17

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

PCM3010DBR Datasheet

More Information

The PCM3010 is a low-cost single-chip 24-, 16-bit stereo audio codec (ADC and DAC) with single-ended analog voltage input and output. Both the analog-to-digital converters (ADCs) and digital-to-analog converters (DACs) employ delta-sigma modulation with 64-times oversampling. The ADCs include a digital decimation filter with a high-pass filter, and the DACs include an 8-times-oversampling digital interpolation filter. The DACs also include a digital de-emphasis function. The PCM3010 accepts four different audio data formats for the ADC and DAC. The PCM3010 provides a power-down mode, which works on the ADC and DAC simultaneously. The PCM3010 is suitable for a wide variety of cost-sensitive consumer applications where good performance is required. The PCM3010 is fabricated using a highly advanced CMOS process and is available in a small 24-pin SSOP package.
