Description

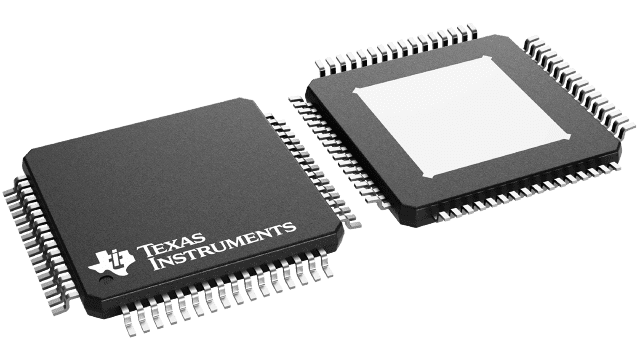

PCM3168APAPR Texas Instruments - Yeehing Electronics
24-bit Multi-channel Audio CODEC 6ch-in/8ch-out with 96/192kHz sampling rate
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.724 |
| 100 — 249 | 6.297 |
| 250 — 999 | 4.949 |
| 1,000 + | 1.51 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - CODECs |
| RoHS | Y |
| Type | Audio CODEC, Multi Channel |
| Resolution | 24 bit |
| Conversion Rate | 192 kHz |
| Interface Type | Serial (I2C, SPI) |
| Number of ADCs | 6 ADC |
| Number of DACs | 8 DAC |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Packaging | Reel |
| Height | 1 mm |
| Length | 10 mm |
| Product | Audio CODECs |
| Series | PCM3168A |
| Width | 10 mm |
| Brand | Texas Instruments |
| THD plus Noise | - 93 dB ADC/- 94 dB DAC |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 6 Input |
| Number of DAC Outputs | 8 Output |
| Product Type | CODECs |
| SNR - Signal to Noise Ratio | 112 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.009108 oz |
For more information, please refer to datasheet
Documents
| PCM3168APAPR Datasheet |
More Information
The PCM3168A device is a high-performance, single-chip, 24-bit, 6-in/8-out, audio coder and decoder (codecs) with single-ended and differential-selectable analog inputs and differential outputs.
