Texas Instruments

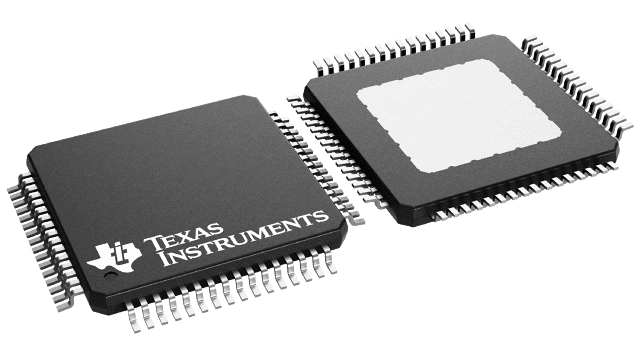

PCM4204PAPT
PCM4204PAPT
Regular price
$5.87 USD
Regular price
Sale price
$5.87 USD
Unit price
per
Couldn't load pickup availability
PCM4204PAPT Texas Instruments - Yeehing Electronics
118dB SNR 4-Channel Audio ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 13.912 |
| 100 — 249 | 12.152 |
| 250 — 999 | 9.37 |
| 1,000 + | 5.87 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio A/D Converter ICs |
| RoHS | Y |
| Series | PCM4204 |
| Number of Converters | 4 Converter |
| Resolution | 24 bit |
| Sampling Rate | 216 kS/s |
| Number of ADC Inputs | 4 Input |
| Operating Supply Voltage | 5 V, 3.3 V |
| Minimum Operating Temperature | - 10 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Packaging | Reel |
| Description/Function | Audio A/D Converter |
| Height | 1 mm |
| Input Voltage | 6 V |
| Length | 10 mm |
| Power Consumption | 640 mW |
| Product | Audio ADCs |
| Type | Audio ADC |
| Width | 10 mm |
| Brand | Texas Instruments |
| Interface Type | Serial |
| Development Kit | PCM4204EVM |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 795 mW |
| Product Type | Audio A/D Converter ICs |
| SNR - Signal to Noise Ratio | 0 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Audio ICs |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Unit Weight | 0.009108 oz |
For more information, please refer to datasheet
Documents
| PCM4204PAPT Datasheet |
More Information
The PCM4204 is a high-performance, four-channel analog-to-digital (A/D) converter designed for professional and broadcast audio applications. The PCM4204 architecture utilizes a 1-bit delta-sigma modulator per channel incorporating a novel density modulated dither scheme for improved dynamic performance.
