Description

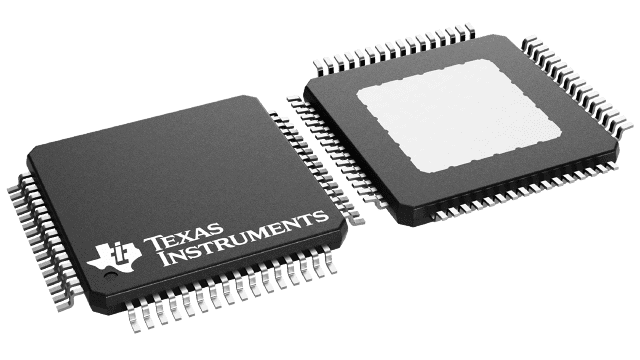

PCM5310PAP Texas Instruments - Yeehing Electronics
4ch/4ch Audio CODEC with 2Vrms Driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.801 |
| 100 — 249 | 5.544 |
| 250 — 999 | 4.358 |
| 1,000 + | 2.59 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - CODECs |
| RoHS | Y |
| Type | Audio CODEC, Multi Channel |
| Resolution | 24 bit |
| Conversion Rate | 192 kHz |
| Interface Type | Serial (I2C) |
| Number of ADCs | 2 ADC |
| Number of DACs | 2 DAC |
| Minimum Operating Temperature | - 25 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Packaging | Reel |
| Product | Audio CODECs |
| Series | PCM5310 |
| Brand | Texas Instruments |
| THD plus Noise | 0.01 % ADC/0.01 % DAC |
| Moisture Sensitive | Yes |
| Product Type | CODECs |
| SNR - Signal to Noise Ratio | 95 dB ADC/100 dB DAC |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.009171 oz |
For more information, please refer to datasheet
Documents
| PCM5310PAP Datasheet |
More Information
The PCM5310 is a four-channel/four-channel audio codec with a 2-VRMS driver, headphone amplifier, analog multiplexer (mux), and six audio interface ports for digital TV applications.
