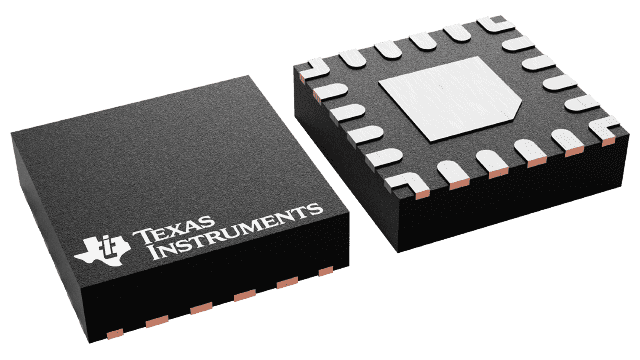

PCMD3140IRTER Texas Instruments - Yeehing Electronics

Four-channel PDM-input to TDM- or I²S-output converter

Pricing (USD)

Quantity	Unit Price
1 — 99	3.052
100 — 249	2.674
250 — 999	1.875
1,000 +	1.06

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

PCMD3140IRTER Datasheet

More Information

The PCMD3140 is a high-performance, pulse-density-modulation (PDM) input to time-division multiplexing (TDM) or I2S output converter that supports simultaneous sampling of up to four digital channels for the PDM microphone input. The device integrates programable digital volume control, a microphone bias voltage, a phase-locked loop (PLL), a programmable high-pass filter (HPF), biquad filters, low-latency filter modes, and allows for output sample rates up to 768 kHz. The device supports time-division multiplexing (TDM), I2S, or left-justified (LJ) audio formats, and can be controlled with the I2C interface. Additionally, the PCMD3140 supports master and slave mode selection for the audio bus interface operation. These integrated high-performance features, along with the ability to be powered from a single-supply of 3.3 V or 1.8 V, make the device an excellent choice for space-constrained audio systems in far-field microphone recording applications.
