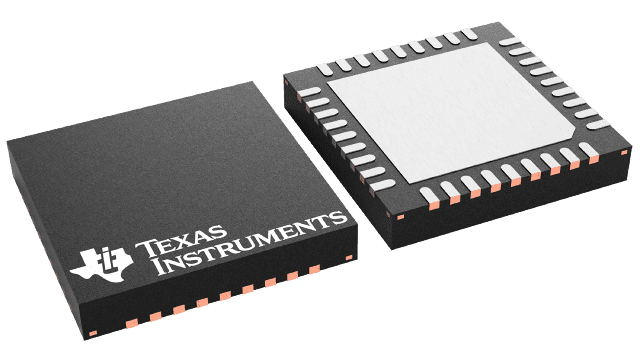

PGA300ARHHR Texas Instruments - Yeehing Electronics
PGA300 Signal Conditioner and Transmitter for Pressure Sensors
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.232 |
100 — 249 | 5.081 |
250 — 999 | 3.993 |
1,000 + | 2.37 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Sensor Interface |
RoHS | Y |
Type | Sensor Signal Conditioner |
Interface Type | 1-Wire |
Supply Voltage - Max | 30 V |
Supply Voltage - Min | 3.3 V |
Operating Supply Current | 2.5 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 150 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-36 |
Packaging | Reel |
Output Current | 2.5 mA |
Series | PGA300 |
Brand | Texas Instruments |
Ib - Input Bias Current | 5 nA |
Moisture Sensitive | Yes |
Operating Supply Voltage | 30 V |
Product Type | Sensor Interface |
Factory Pack Quantity | 2500 |
Subcategory | Interface ICs |
Unit Weight | 0.003683 oz |
For more information, please refer to datasheet
Documents
PGA300ARHHR Datasheet |
More Information
The PGA300 provides an interface for piezoresistive and strain-gauge pressure-sense elements. The device is a full system-on-chip (SoC) solution that incorporates a programmable analog front-end (AFE), ADC, and digital signal processing that enable direct connection to the sense element. Further, the PGA300 includes integrated voltage regulators and an oscillator, thus minimizing the number of external components. The device achieves high accuracy by employing third-order temperature and nonlinearity compensation. External communication is achieved by using a one-wire serial interface (OWI) through the power-supply pin in order to simplify the system calibration process. An Integrated DAC supports absolute-voltage, ratiometric-voltage, and 4-mA to
