Texas Instruments
PGA5807ARGCT
PGA5807ARGCT
Regular price
$16.98 USD
Regular price
Sale price
$16.98 USD
Unit price
per
Couldn't load pickup availability
PGA5807ARGCT Texas Instruments - Yeehing Electronics
High Performance, Integrated 8-channel AFE with LNA, PGA, and LPF
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 37.124 |
| 100 — 249 | 32.999 |
| 250 — 999 | 27.127 |
| 1,000 + | 16.98 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Front End |
| RoHS | Y |
| Operating Supply Voltage | 3.13 V to 3.6 V |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

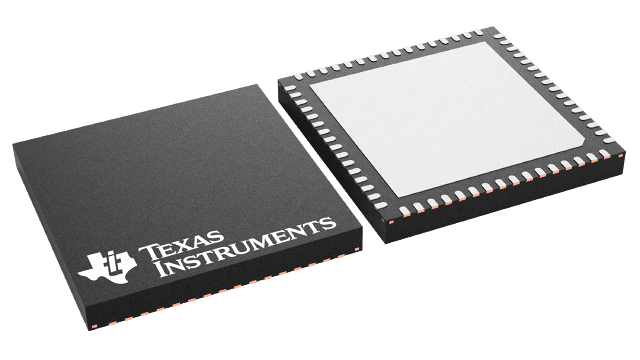

| Package / Case | VQFN-64 |
| Packaging | Reel |
| Amplifier Type | PGA |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | PGA5807A |
| Brand | Texas Instruments |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Product Type | RF Front End |
| Factory Pack Quantity | 250 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.008021 oz |
For more information, please refer to datasheet
Documents
| PGA5807ARGCT Datasheet |
More Information
The PGA5807A is an 8-channel, high-bandwidth, analog front-end (AFE). The device functions on a single 3.3-V analog supply. The device supports high-bandwidth input frequencies with a total power of 60 mW per channel. The PGA5807A consists of a low-noise amplifier (LNA), a programmable gain amplifier (PGA), and a programmable low-pass filter (LPF). The LNA has a fixed 12-dB gain (the differential amplifier supports both direct and capacitive input coupling) and supports a maximum linear input range of 500 mVPP.
