PGA870IRHDR Texas Instruments - Yeehing Electronics

High-Speed Fully Differential Programmable Gain Amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	7.748
100 — 249	6.317
250 — 999	4.965
1,000 +	2.95

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Differential Amplifiers
RoHS	Y
Series	PGA870
SR - Slew Rate	2.9 kV/us
CMRR - Common Mode Rejection Ratio	54 dB to 76 dB
Vos - Input Offset Voltage	3 mV
Operating Supply Current	143 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

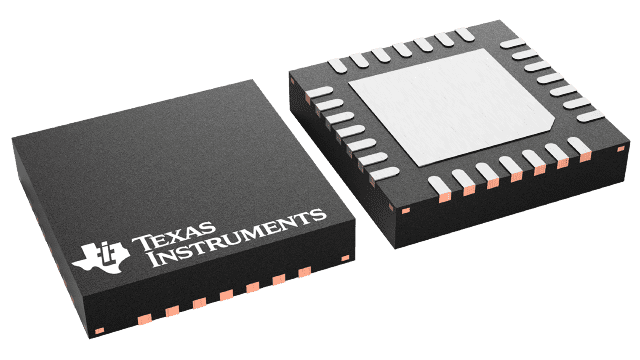

Package / Case	VQFN-28
Packaging	Reel
Features	Shutdown
Product	Differential Amplifiers
Brand	Texas Instruments
Development Kit	PGA870EVM
Moisture Sensitive	Yes
Product Type	Differential Amplifiers
Factory Pack Quantity	3000
Subcategory	Amplifier ICs
Unit Weight	0.002526 oz

For more information, please refer to datasheet

Documents

PGA870IRHDR Datasheet

More Information

The PGA870 is a wideband programmable-gain amplifier (PGA) for high-speed signal chain and data acquisition systems. The PGA870 has been optimized to provide high bandwidth, low distortion, and low noise, making it ideally suited as a 14-bit analog-to-digital converter (ADC) driver for wireless base station signal chain applications. The wide gain range of –11.5 dB to +20 dB can be adjusted in 0.5-dB gain steps through a 6-bit control word applied to the parallel interface. The gain control interface may be configured as a level-triggered latch or an edge-triggered latch, or it may be placed in an unlatched (transparent) mode. In addition to the 6-bit gain control, the PGA870 contains a power-down pin (PD) that can be used to put the device into a low-current, power-down mode. In this mode, the quiescent current drops to 2 mA, but the gain control circuitry remains active, allowing the gain of the PGA870 to be set before device power-up. The PGA870 is offered in a QFN-28 PowerPAD™ package.
