Texas Instruments
PGA870IRHDT
PGA870IRHDT
Couldn't load pickup availability
PGA870IRHDT Texas Instruments - Yeehing Electronics
High-Speed Fully Differential Programmable Gain Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.388 |
| 100 — 249 | 7.327 |
| 250 — 999 | 5.649 |
| 1,000 + | 3.54 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Differential Amplifiers |
| RoHS | Y |
| Series | PGA870 |
| GBP - Gain Bandwidth Product | 650 MHz |
| SR - Slew Rate | 2.9 kV/us |
| CMRR - Common Mode Rejection Ratio | 54 dB to 76 dB |
| Output Current per Channel | 50 mA |
| Ib - Input Bias Current | 0.5 uA |
| Vos - Input Offset Voltage | 3 mV |
| Supply Voltage - Max | 6 V |
| Operating Supply Current | 143 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

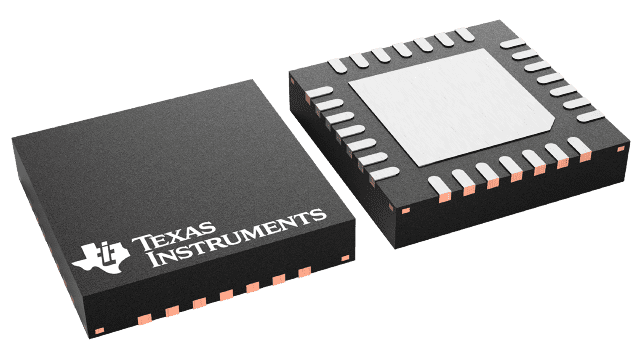

| Package / Case | VQFN-28 |
| Packaging | Reel |
| Features | Shutdown |
| Product | Differential Amplifiers |
| Brand | Texas Instruments |
| Input Voltage Range - Max | 5.25 V |
| Development Kit | PGA870EVM |
| Maximum Input Resistance | 173 Ohms |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 2.9 W |
| Product Type | Differential Amplifiers |
| PSRR - Power Supply Rejection Ratio | 76 dB |
| Settling Time | 3 ns |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.002526 oz |
For more information, please refer to datasheet
Documents
| PGA870IRHDT Datasheet |
More Information
The PGA870 is a wideband programmable-gain amplifier (PGA) for high-speed signal chain and data acquisition systems. The PGA870 has been optimized to provide high bandwidth, low distortion, and low noise, making it ideally suited as a 14-bit analog-to-digital converter (ADC) driver for wireless base station signal chain applications. The wide gain range of –11.5 dB to +20 dB can be adjusted in 0.5-dB gain steps through a 6-bit control word applied to the parallel interface. The gain control interface may be configured as a level-triggered latch or an edge-triggered latch, or it may be placed in an unlatched (transparent) mode. In addition to the 6-bit gain control, the PGA870 contains a power-down pin (PD) that can be used to put the device into a low-current, power-down mode. In this mode, the quiescent current drops to 2 mA, but the gain control circuitry remains active, allowing the gain of the PGA870 to be set before device power-up. The PGA870 is offered in a QFN-28 PowerPAD™ package.
