Texas Instruments
PGA970QPHPR
PGA970QPHPR
Regular price
$6.64 USD
Regular price
Sale price
$6.64 USD
Unit price
per
Couldn't load pickup availability

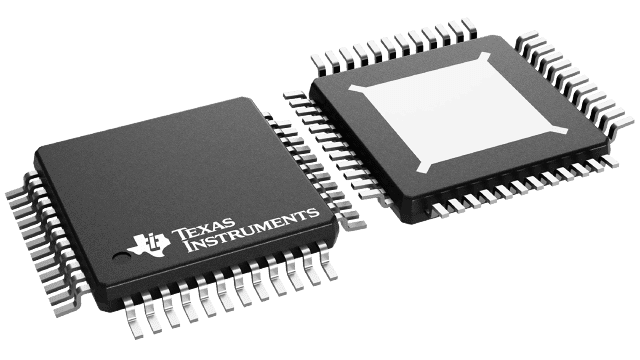

PGA970QPHPR Texas Instruments - Yeehing Electronics
LVDT sensor signal conditioner
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 15.747 |
| 100 — 249 | 13.755 |
| 250 — 999 | 10.605 |
| 1,000 + | 6.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Sensor Interface |
| RoHS | Y |
| Type | LVDT Sensor Signal Conditioner |
| Interface Type | 1-Wire, SPI |
| Supply Voltage - Max | 30 V |
| Supply Voltage - Min | 3.5 V |
| Operating Supply Current | 12.5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-48 |
| Packaging | Reel |
| Input Current | 12.5 mA |
| Input Voltage | 3.5 V to 30 V |
| Output Current | 2.5 mA |
| Product | Sensor Interfaces |
| Series | PGA970 |
| Brand | Texas Instruments |
| Number of Channels | 3 Channel |
| Reference Type | Internal |
| Ib - Input Bias Current | 5 nA |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.5 V to 30 V |
| Product Type | Sensor Interface |
| Reference Voltage | 1.25 V |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.004991 oz |
For more information, please refer to datasheet
Documents
| PGA970QPHPR Datasheet |
More Information
The PGA970 is a highly integrated system-on-chip LVDT sensor-signal conditioner with advanced signal-processing capabilities. It contains a three-channel, low-noise, programmable-gain, analog front end that allows direct connection to the sense element, followed by three independent 24-bit delta-sigma ADCs.
