Texas Instruments
REF3325AIDCKR
REF3325AIDCKR
Regular price
$0.45 USD
Regular price
Sale price
$0.45 USD
Unit price
per
Couldn't load pickup availability

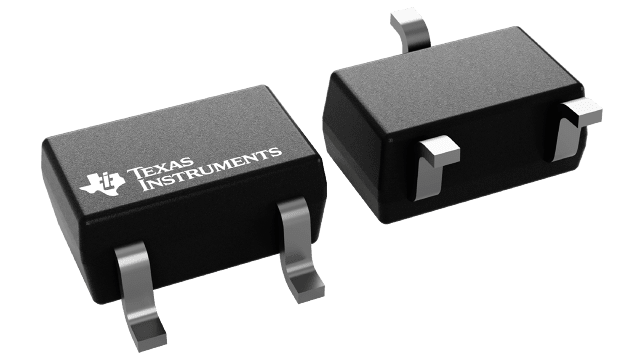

REF3325AIDCKR Texas Instruments - Yeehing Electronics
2.5-V, 30-ppm/°C drift, 3.9-µA, 3-pin SOT-23, 3-pin SC70, 8-pin UQFN voltage reference
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.12 |
| 100 — 249 | 0.925 |
| 250 — 999 | 0.665 |
| 1,000 + | 0.45 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Voltage References |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SC70-3 |
| Reference Type | Series References |
| Output Voltage | 2.5 V |
| Initial Accuracy | 0.15 % |
| Temperature Coefficient | 30 PPM / C |
| Series VREF - Input Voltage - Max | 5.5 V |
| Shunt Current - Max | 5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | REF3325 |
| Packaging | Reel |
| Accuracy | 50 PPM/mA |
| Height | 0.9 mm |
| Length | 2 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Voltage References |
| Width | 1.25 mm |
| Brand | Texas Instruments |
| Topology | Series References |
| Moisture Sensitive | Yes |
| Operating Supply Current | 3.9 uA |
| Product Type | Voltage References |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.050717 oz |
For more information, please refer to datasheet
Documents
| REF3325AIDCKR Datasheet |
More Information
The REF33xx is a low-power, precision, low-dropout voltage reference family available in tiny SC70-3 and SOT-23-3 packages, and in a 1.5-mm × 1.5-mm UQFN-8 package. Small size and low power consumption (5-µA max) make the REF33xx ideal for a wide variety of portable and battery-powered applications.
