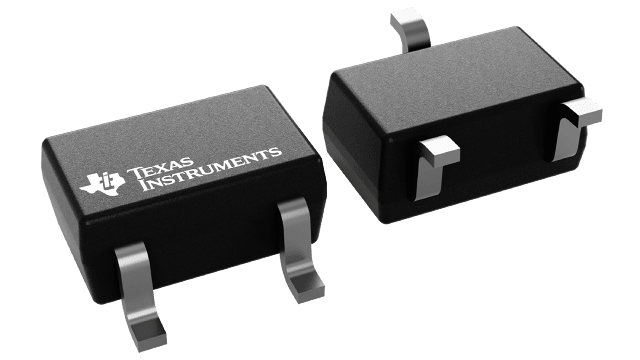

REF3325AIDCKT


YeeHing #: Y012-REF3325AIDCKT
Inventory: 5400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

REF3325AIDCKT Texas Instruments - Yeehing Electronics

2.5-V, 30-ppm/°C drift, 3.9-µA, 3-pin SOT-23, 3-pin SC70, 8-pin UQFN voltage reference

Pricing (USD)

Quantity Unit Price
1 — 99 1.947
100 — 249 1.608
250 — 999 1.155
1,000 + 0.61

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Voltage References
RoHS Y
Mounting Style SMD/SMT
Package / Case SC70-3
Reference Type Series References
Output Voltage 2.5 V
Initial Accuracy 0.15 %
Temperature Coefficient 30 PPM / C
Series VREF - Input Voltage - Max 5.5 V
Shunt Current - Max 5 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series REF3325
Packaging Reel
Accuracy 50 PPM/mA
Height 0.9 mm
Length 2 mm
Operating Temperature Range - 40 C to + 125 C
Product Voltage References
Width 1.25 mm
Brand Texas Instruments
Topology Series References
Moisture Sensitive Yes
Operating Supply Current 3.9 uA
Product Type Voltage References
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Unit Weight 0.000219 oz

For more information, please refer to datasheet

Documents

REF3325AIDCKT Datasheet

More Information

The REF33xx is a low-power, precision, low-dropout voltage reference family available in tiny SC70-3 and SOT-23-3 packages, and in a 1.5-mm × 1.5-mm UQFN-8 package. Small size and low power consumption (5-µA max) make the REF33xx ideal for a wide variety of portable and battery-powered applications.
