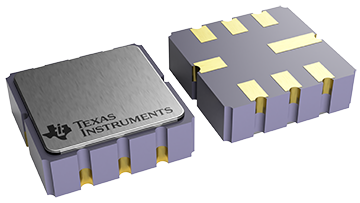

REF7025QFKHT Texas Instruments - Yeehing Electronics

Ultra-high-precision voltage reference with low noise and low drift

Pricing (USD)

Quantity	Unit Price
1 — 99	10.929
100 — 249	9.547
250 — 999	7.361
1,000 +	4.61

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

REF7025QFKHT Datasheet

More Information

The REF70 is a family of high precision series voltage references that offers the industry’s lowest noise (0.23 ppmp-p), very low temperature drift coefficient (2 ppm/°C), and high accuracy (±0.025%). The REF70 offers a high PSRR, low drop-out voltage and excellent load and line regulation to help meet strict transient requirements. This combination of precision and features is designed for applications such as test and measurement that demand a precise reference to be paired with precision, high-resolution data converters such as ADS8900B, ADS127L01 and DAC11001A, to achieve optimal performance in the signal chain. The REF70 is also designed for noise-sensitive medical applications such as ultrasound and X-ray to help enable low-noise measurements from the analog front end.
