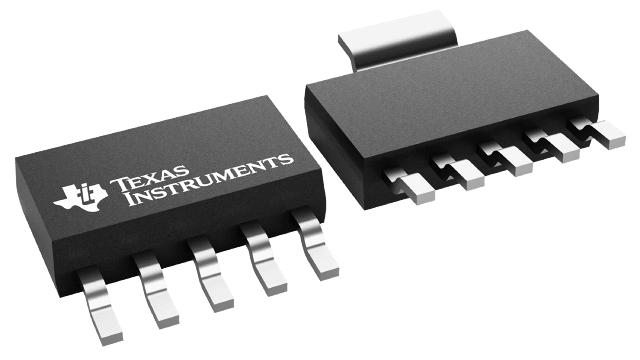

REG104GA-5/2K5G4 Texas Instruments - Yeehing Electronics

1-A, 15-V, low-dropout voltage regulator with enable

Pricing (USD)

Quantity	Unit Price
1 — 99	5.761
100 — 249	4.697
250 — 999	3.691
1,000 +	2.19

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SOT-223-6
Output Voltage	5 V
Output Current	1 A
Number of Outputs	1 Output
Polarity	Positive
Input Voltage MAX	15 V
Input Voltage MIN	2.1 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Dropout Voltage	230 mV
Series	REG104-5
Packaging	Reel
Height	1.6 mm
Length	6.5 mm
Operating Temperature Range	- 40 C to + 85 C
Width	3.5 mm
Brand	Texas Instruments
Dropout Voltage - Max	500 mV at 1 A
Voltage Regulation Accuracy	2 %
Ib - Input Bias Current	600 uA
Moisture Sensitive	Yes
Product Type	LDO Voltage Regulators
Reference Voltage	1.295 V
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.004233 oz

For more information, please refer to datasheet

Documents

REG104GA-5/2K5G4 Datasheet

More Information

The REG104 is a family of low-noise, low-dropout linear regulators with low ground pin current. Its new DMOS topology provides significant improvement over previous designs, including low dropout voltage (only 230mV typ at full load), and better transient performance. In addition, no output capacitor is required for stability, unlike conventional low dropout regulators that are difficult to compensate and require expensive low ESR capacitors greater than 1µF.
