RF430FRL153HCRGER Texas Instruments - Yeehing Electronics
NFC ISO15693 Sensor Transponder with 14-bit sigma-delta ADC
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.202 |
100 — 249 | 1.796 |
250 — 999 | 1.411 |
1,000 + | 0.84 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | RFID Transponders |
RoHS | Y |
Memory Size | 2 kB |
Operating Frequency | 13.56 MHz |
Maximum Operating Temperature | + 70 C |
Minimum Operating Temperature | 0 C |
Mounting Style | SMD/SMT |

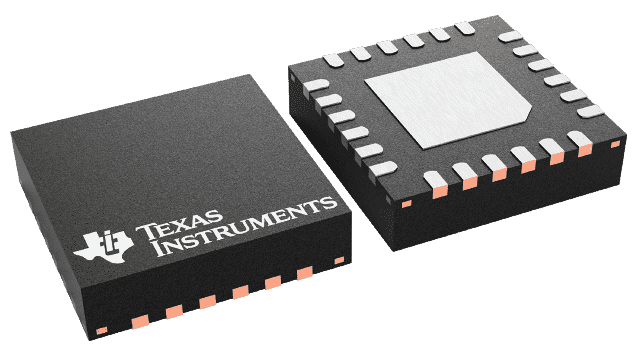

Package / Case | VQFN-24 |
Packaging | Reel |
Operating Temperature Range | 0 C to + 70 C |
Series | RF430FRL153H |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | RFID Transponders |
Factory Pack Quantity | 3000 |
Subcategory | Wireless & RF Integrated Circuits |
Unit Weight | 0.001926 oz |
For more information, please refer to datasheet
Documents
RF430FRL153HCRGER Datasheet |
More Information
The RF430FRL15xH device is a 13.56-MHz transponder chip with a programmable 16-bit MSP430 low-power microcontroller. The device features embedded universal FRAM nonvolatile memory for storage of program code or user data such as calibration and measurement data. The RF430FRL15xH supports communication, parameter setting, and configuration through the ISO/IEC 15693, ISO/IEC 18000-3 compliant RFID interface and the SPI or I2C interface. Sensor measurements are supported by the internal temperature sensor and the onboard 14-bit sigma-delta analog-to-digital converter (ADC), and digital sensors can be connected through SPI or I2C.
