Description

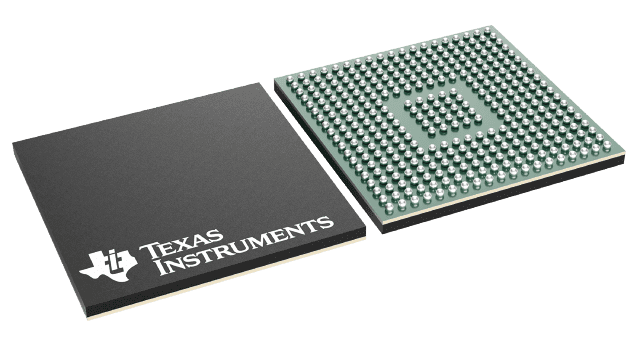

RM57L843BZWTT Texas Instruments - Yeehing Electronics
16/32 Bit Arm Cortex-R5F Flash MCU, RISC, EMAC
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 51.769 |
100 — 249 | 46.017 |
250 — 999 | 37.829 |
1,000 + | 27.07 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | ARM Microcontrollers - MCU |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | NFBGA-337 |
Series | RM57L843 |
Core | ARM Cortex R5F |
Data Bus Width | 32 bit |
Maximum Clock Frequency | 330 MHz |
Program Memory Size | 4096 kB |
Data RAM Size | 512 kB |
ADC Resolution | 12 bit |
Number of I/Os | 168 I/O |
Operating Supply Voltage | 1.2 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 105 C |
Product | MCU |
Program Memory Type | Flash |
Brand | Texas Instruments |
Data RAM Type | SRAM |
Data ROM Size | 128 kB |
Interface Type | CAN, I2C, LIN, UART |
I/O Voltage | 3 V to 3.6 V |
Moisture Sensitive | Yes |
Number of ADC Channels | 41 Channel |
Processor Series | Hercules |
Product Type | ARM Microcontrollers - MCU |
Factory Pack Quantity | 90 |
Subcategory | Microcontrollers - MCU |
Supply Voltage - Max | 1.32 V |
Supply Voltage - Min | 1.14 V |
Watchdog Timers | Watchdog Timer, Windowed |
Unit Weight | 0.023066 oz |
For more information, please refer to datasheet
Documents
RM57L843BZWTT Datasheet |
More Information
The RM57L843 device is part of the Hercules RM series of high-performance ARM® Cortex®-R-based MCUs. Comprehensive documentation, tools, and software are available to assist in the development of IEC 61508 functional safety applications. Start evaluating today with the Hercules RM57x LaunchPad Development Kit. The RM57L843 device has on-chip diagnostic features including: dual CPUs in lockstep, Built-In Self-Test (BIST) logic for CPU, the N2HET coprocessors, and for on-chip SRAMs; ECC protection on the L1 caches, L2 flash, and SRAM memories. The device also supports ECC or parity protection on peripheral memories and loopback capability on peripheral I/Os.
