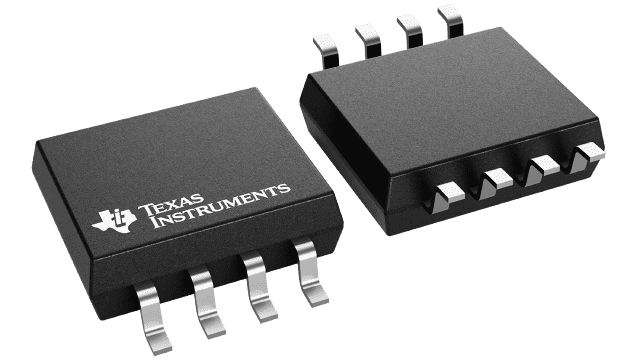

SA5534PSR Texas Instruments - Yeehing Electronics
Single, 30-V, 10-MHz, low-noise audio op amp with -40°C to 85°C operation
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.763 |
100 — 249 | 0.587 |
250 — 999 | 0.432 |
1,000 + | 0.22 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | SO-8 |
Supply Voltage - Max | 30 V |
Output Current per Channel | 38 mA |
Number of Channels | 1 Channel |
GBP - Gain Bandwidth Product | 10 MHz |
SR - Slew Rate | 13 V/us |
CMRR - Common Mode Rejection Ratio | 70 dB to 100 dB |
Ib - Input Bias Current | 1.5 uA |
Vos - Input Offset Voltage | 4 mV |
Supply Voltage - Min | 10 V |
Operating Supply Current | 4 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Shutdown | No Shutdown |
Series | SA5534 |
Packaging | Reel |
Amplifier Type | Low Noise Amplifier |
Height | 1.95 mm |
Length | 6.2 mm |
Product | Operational Amplifiers |
Supply Type | Dual |
Technology | Bipolar |
Width | 5.3 mm |
Brand | Texas Instruments |
Dual Supply Voltage | +/- 9 V, +/- 12 V |
en - Input Voltage Noise Density | 7 nV/sqrt Hz |
In - Input Noise Current Density | 2.5 pA/sqrt Hz |
Maximum Dual Supply Voltage | +/- 15 V |
Minimum Dual Supply Voltage | +/- 5 V |
Operating Supply Voltage | +/- 5 V to +/- 15 V |
Product Type | Op Amps - Operational Amplifiers |
Factory Pack Quantity | 2000 |
Subcategory | Amplifier ICs |
Voltage Gain dB | 100 dB |
Unit Weight | 0.004325 oz |
For more information, please refer to datasheet
Documents
SA5534PSR Datasheet |
More Information
The NE5534, NE5534A, SA5534, and SA5534A devices are high-performance operational amplifiers combining excellent dc and ac characteristics. Some of the features include very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, and high slew rate.
