Texas Instruments
SCAN90CP02VY/NOPB
SCAN90CP02VY/NOPB
Couldn't load pickup availability

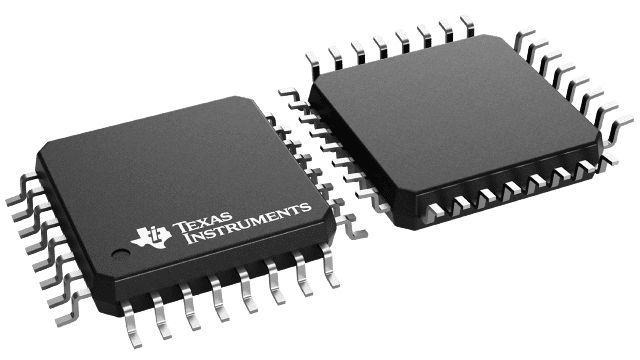

SCAN90CP02VY/NOPB Texas Instruments - Yeehing Electronics
1.5-Gbps 2x2 LVDS crosspoint switch with pre-emphasis and IEEE 1149.6
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.647 |
| 100 — 249 | 4.604 |
| 250 — 999 | 3.618 |
| 1,000 + | 2.15 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog & Digital Crosspoint ICs |
| RoHS | Y |
| Series | SCAN90CP02 |
| Product | Digital Crosspoint Switches |
| Configuration | 2 x 2 |
| Data Rate | 1.5 Gb/s |
| Input Type | CML, LVDS, LVPECL |
| Output Type | LVDS |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-32 |
| Packaging | Tray |
| Supply Type | Digital |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Analog & Digital Crosspoint ICs |
| Factory Pack Quantity | 250 |
| Subcategory | Communication & Networking ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Unit Weight | 0.027302 oz |
For more information, please refer to datasheet
Documents
| SCAN90CP02VY/NOPB Datasheet |
More Information
The SCAN90CP02 is a 1.5 Gbps 2 x 2 LVDS crosspoint switch. High speed data paths and flow-through pinout minimize internal device jitter, while configurable 0/25/50/100% pre-emphasis overcomes external ISI jitter effects of lossy backplanes and cables. The differential inputs interface to LVDS and Bus LVDS signals such as those on TI's 10-, 16-, and 18- bit Bus LVDS SerDes, as well as CML and LVPECL. The SCAN90CP02 can also be used with ASICs and FPGAs. The non-blocking crosspoint architecture is pin-configurable as a 1:2 clock or data splitter, 2:1 redundancy mux, crossover function, or dual buffer for signal booster and stub hider applications.
