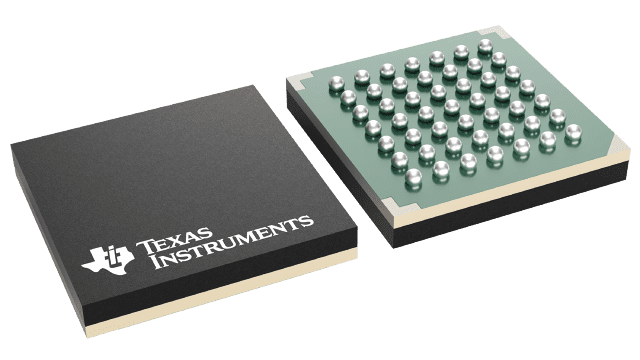

SCAN921025HSM/NOPB Texas Instruments - Yeehing Electronics

High temperature 20 to 80-MHz 10-bit serializer with IEEE 1149.1 test access

Pricing (USD)

Quantity	Unit Price
1 — 99	8.541
100 — 249	7.46
250 — 999	5.752
1,000 +	3.60

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Serializers & Deserializers - Serdes
RoHS	Y
Type	Serializer
Data Rate	800 Mb/s
Input Type	LVCMOS, LVTTL
Output Type	LVDS, BLVDS
Number of Inputs	10 Input
Number of Outputs	1 Output
Operating Supply Voltage	3.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	FBGA-49
Packaging	Tray
Height	1.04 mm
Input Current	1 uA
Length	7 mm
Series	SCAN921025H
Width	7 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	105 mA
Pd - Power Dissipation	1.47 W
Product Type	Serializers & Deserializers - Serdes
Factory Pack Quantity	416
Subcategory	Interface ICs
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Unit Weight	0.014110 oz

For more information, please refer to datasheet

Documents

SCAN921025HSM/NOPB Datasheet

More Information

The SCAN921025H transforms a 10-bit wide parallel LVCMOS/LVTTL data bus into a single high speed Bus LVDS serial data stream with embedded clock. The SCAN921226H receives the Bus LVDS serial data stream and transforms it back into a 10-bit wide parallel data bus and recovers parallel clock.
